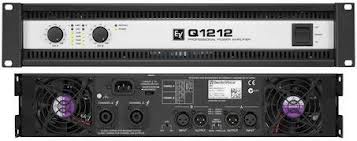

Electro-Voice Q1212 Stereo Power Amplifier Stereo 1200w.4-ohm
Electro-Voice Q1212 Stereo Power Amplifier Stereo 1200w.4-ohm
|
- ยี่ห้อ : Electro-Voice
- รุ่น : Q1212
Q1212 1800 W per channel Class-H power amplifier
| Amplifier Gain |
32 dB |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω |
1800 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω |
1200 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω |
750 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 4Ω |
1100 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 8Ω |
550 Watts |
| Cooling |
Front-to-Rear, 3-stage fans |
| DIM 30 |
0.05 % |
| Electronics Type |
Amplifier |
| Frequency Response |
10 Hz - 40 kHz ±1 dB |
| Impedance |
2/4/8 Ω |
| Input Impedance (Balanced) |
20 kΩ |
| Input Sensitivity |
+6.6 dBu |
| Intermodulation Distortion (SMPTE) |
0.1 % |
| Mains Voltage |
100 V, 120 V, 230 V or 240 V; 50-60 Hz (factory configured) |
| Maximum Bridged Output 4Ω |
3600 Watts |
| Maximum Bridged Output 8Ω |
2400 Watts |
| Maximum Input Voltage |
+21 dBu 8.69 Vrms |
| Network Control (IRIS-Net) |
No |
| Signal-to-Noise Ratio (A-weighted) |
110 dB |
| Slew Rate |
30 V/µs |
| Topology |
Class-H |
| Total Harmonic Distortion |
0.03 % |
- ราคาปกติ : 66,500.00 ฿
- ราคาพิเศษ : 59,850.00 ฿
-
|
| |
|
| |
|
|
|
