Electro-Voice PA2400T Stereo Power Amplifier 400 w.4-ohm,70/100V.
Electro-Voice PA2400T Stereo Power Amplifier 400 w.4-ohm,70/100V.
|
- ยี่ห้อ : Electro-Voice
- รุ่น : PA2400T

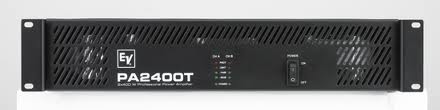

PA2400T Dual 400 W per channel power amplifier
| Amplifier Gain |
34 dB |
| Continuous Rated Power (1 kHz, THD 1%) 100v |
430 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω |
430 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 70v |
430 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω |
215 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 100v |
400 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 4Ω |
400 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 70v |
400 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 8Ω |
200 Watts |
| Crosstalk |
< < -75 dB |
| DIM 30 |
< 0.1 % |
| Frequency Response |
65Hz - 40kHz -1dB, ref. 1kHz |
| Impedance |
4/8 Ω 70V/100V |
| Input Impedance (Balanced) |
> 20 kΩ |
| Input Sensitivity |
0 dBu (775mV) @ rated output power or voltage, 1kHz |
| Intermodulation Distortion (SMPTE) |
< 0.1 % |
| Network Control (IRIS-Net) |
No |
| Number of Channels |
2 |
| Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz |
400/200 W 70V/100V-400 |
| Rated output power (*rated load) THD < 1%, 1kHz |
430/215 W 70V/100V-430 |
| Signal-to-Noise Ratio (A-weighted) |
103 dB |
| Slew Rate |
25 V/µs 70V-46, 100V-65 |
| Total Harmonic Distortion |
< 0.1 % |
- ราคาปกติ : 52,000.00 ฿
- ราคาพิเศษ : 46,800.00 ฿
-
|
| |
|
| |
|
|
|
