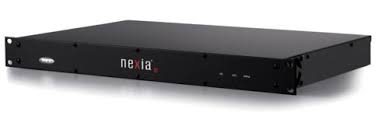

BIAMP NEXIA VC digital signal processor video conference

Nexia VC is a digital signal processor featuring Biamp Sona™ AEC — our wideband acoustic echo cancellation technology.

• 8 wide-band AEC balanced mic/line inputs
• 2 standard balanced mic/line inputs
• 4 balanced mic/line outputs
• codec interface with balanced line input & output
• Ethernet port for software configuration/control
• serial port for third-party RS-232 remote control
• remote control bus for dedicated control panels
• NexLink ports for multi-unit system designs
• NEXIA software for Windows® 2000/XP Professional
• pre-configured I/O with definable processing
• RoHS compliance and AES grounding practices
• CE marked and UL listed
• covered by Biamp Systems' five-year warranty
• Ability to select, view, and calibrate:
  • Mixers: standard, automatic, matrix, combiners
  • Equalizers: graphic, parametric, feedback
  • Filters: HPF, LPF, high shelf, low shelf, all-pass
  • Crossovers: 2-Way, 3-Way and 4-way
  • Dynamics: leveler, comp/limiter, ducker, ANC
  • Routers: 2x1 ~ 32x32
  • Delays: 0 ~ 2000 ms
  • Controls: levels, presets, logic, RS-232, etc.
  • Meters: signal present, peak, RMS
  • Generators: tone, pink-noise, white-noise
  • Diagnostics: transfer function
