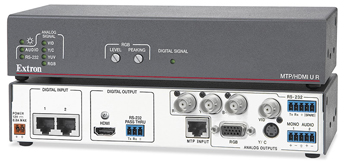

EXTRON MTP/HDMI U R Universal Twisted Pair Receiver for HDMI, VGA, Video, Audio, and RS-232
เข้าชม 1649
| ตอบ 0
EXTRON MTP/HDMI U R Universal Twisted Pair Receiver for HDMI, VGA, Video, Audio, and RS-232
รหัสสินค้า : 60-1048-01
ยี่ห้อ : Extron
รุ่น : MTP/HDMI U R
Features
Accepts digital and analog video formats, audio, and control signals over CATx cables — Standard UTP/STP cables provide an economical, easily installed cable solution
Outputs: RGB on 15-pin HD, component video on 3 BNCs, S-video on 4-pin mini DIN, composite video on BNC, HDMI connector, and captive screw connectors for balanced or unbalanced dual mono audio and RS-232
HDMI Twisted Pair input compatible with HDMI 201 and DVI 201 Series Twisted Pair Transmitters
MTP Twisted Pair input compatible with MTP Series Twisted Pair Transmitters, Switchers, and DAs, as well as MTPX and MTPX Plus Twisted Pair Matrix Switchers
Automatically routes incoming video signals to appropriate output connectors
Digital Output:
- HDCP compliant
- Supports data rates up to 1.65 Gbps per color
- Supports EDID and HDCP transmission
- Supports bidirectional RS-232 or IR signals
Analog Output:
- Supports RGBHV, HD component video, S-video, composite video, mono audio, and RS-232
- Separate variable level and peaking controls
- Supports bidirectional RS-232 signals
- Compatible with HDTV component video, bi-level or tri-level sync
- Dual mono audio output - The MTP/HDMI U R outputs balanced or unbalanced dual mono audio signals
LED indicators for source signal presence and power
UL 2043 plenum rated - The MTP/HDMI U R meets UL 2043 for heat and smoke release, excluding power supply
1U, half rack width metal enclosure — The MTP/HDMI U R can be discreetly installed above a projector or behind a flat-panel display
