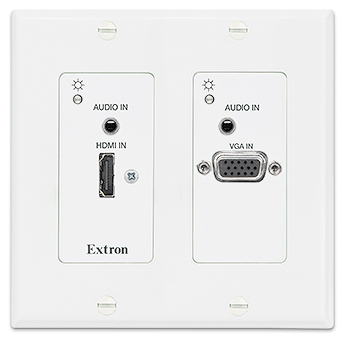

Extron DTP T UWP 232 D Long Distance Two Input DTP Transmitter for HDMI and VGA with Audio Embedding - Decorator-Style Wallplate 70 metre

เข้าชม 806 | ตอบ 0
Extron DTP T UWP 232 D Long Distance Two Input DTP Transmitter for HDMI and VGA with Audio Embedding - Decorator-Style Wallplate 70 metre
  • ยี่ห้อ : Extron
  • รุ่น : DTP T UWP 232 D
  • Features
    • Transmits HDMI or analog video, control, and analog audio up to 330 feet (100 meters) over a shielded CATx cable — The DTP T UWP 332 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
    • Inputs: One HDMI, one VGA on 15‑pin HD, two 3.5 mm stereo mini jacks for audio
    • Output: One DTP® 330 twisted pair output on RJ‑45
    • Auto‑switching between inputs — Auto‑switching allows for simple, unmanaged installation in locations such as in a lectern or floor box. When multiple inputs are active, the highest‑numbered input with an active video signal takes priority.
    • Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 2K — The DTP T UWP 332 D supports digital signal transmission up to 330 feet (100 meters) over a shielded twisted pair cable and maintains superior image quality at the highest resolutions.
    • Analog stereo audio embedding — Analog stereo audio signals can be selectively embedded onto the digital video output signal and transported over DTP. The HDMI input can be set to pass the embedded digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected.
    • Remote power capability — For simplified installation, the transmitter can be remotely powered by a DTP 330‑enabled product over the twisted pair connection.
    • Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
    • Compatible with CATx shielded twisted pair cable — The DTP T UWP 332 D fully supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
    • Independent analog audio inputs — The DTP T UWP  332 D provides two independent stereo analog audio connections for simultaneous transmission over the same shielded twisted pair cable.
    • Supported HDMI specification features include data rates up to 6.75 Gbps, 3D, and HD lossless audio formats
    • Supports multiple embedded audio formats — The DTP T UWP 332 D is compatible with a broad range of multi‑channel audio signals, providing reliable operation with HDMI sources.
    • Bidirectional RS‑232 and unidirectional IR pass‑through for AV device control — Bidirectional RS‑232 control and unidirectional IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
    • Digital conversion of analog input signals — Analog signals are digitized, ensuring that a reliable, high quality digital video signal is sent to the output destination.
    • HDCP compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
    • User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
    • EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
    • Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
    • HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.
    • Automatic color bit depth management — Automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and display.
    • Compatible with all DTP 330 Series receivers and DTP 330‑enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP 330‑enabled products to meet application requirements.
    • RS‑232 control port — Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
    • Contact closure control port — Can be used for external control of input switching.
    • Front panel USB configuration port
    • LED indicators for signal presence, HDCP, and power — Provides visual indication of system status for real‑time feedback and monitoring of key performance parameters.
    • RJ‑45 signal and link LED indicators for DTP port — Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
    • Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
    • JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
    • Mounts in an included two-gang decorator-style wallplate — The two‑gang decorator-style wallplate is available in black or white to blend with a wide range of environments.
  • ราคาปกติ : 53,680.00 ฿
  • ราคาพิเศษ : 48,800.00 ฿
