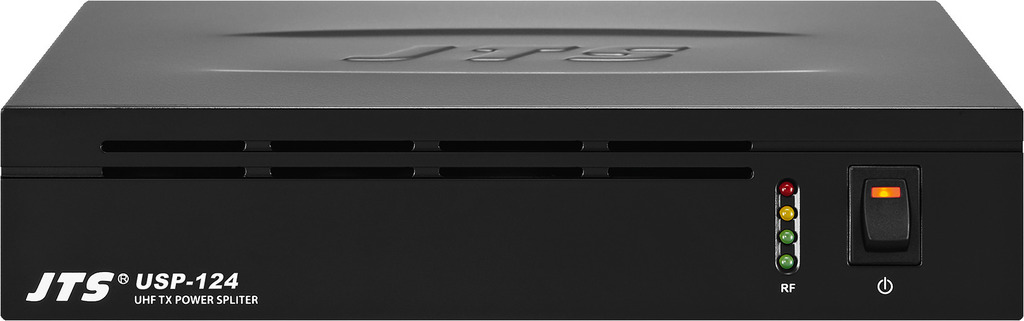

JTS USP-124 UHF 4 channel transmission signal splitter
JTS USP-124 UHF 4 channel transmission signal splitter
|
- ยี่ห้อ : JTS
- รุ่น : USP-124
USP-124
The USP-124 is a UHF 4 channel transmission signal splitter. It provides maximum output level of 26 dBm at each output port. The main application of the product is to provide larger coverage of transmission signal, for example, different floors in a building.
- Carrier Frequency Range UHF 470~970MHz
- Amplifier Gain 0~+2dB
- Input/Output VSWR ≦1.5:1
- Input Power Indicator +3dBm, +7dBm, +15dBm, +20dBm
- Maximum Input Power +26dBm (Under +24dBm is Recommended)
- Power Supply DC 12~15V/1A
- Connectors BNC Socket(1 Input, 4 Outputs)
- Dimensions(mm) 212 (W) × 44 (H)× 203 (D)
- Weight 350g
- ราคาปกติ : 10,600.00 ฿
- ราคาพิเศษ : 9,540.00 ฿
-
|
| |
|
| |
|
