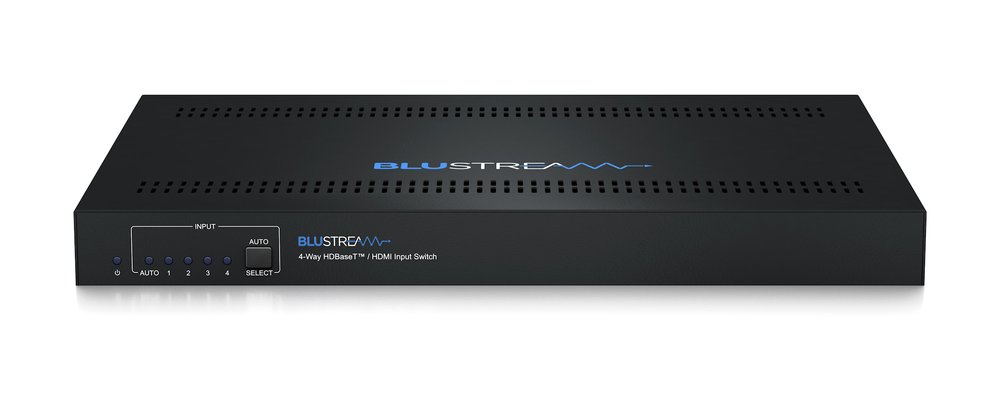

The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP. Specifications
Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, 19-pin, female
Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
TCP/IP Control: 1 x RJ45, female
IR Input Ports: 2 x 3.5mm stereo jack
Casing Dimensions (W x H x D): 305mm x 28mm x 220mm
Shipping Weight: 1.5kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
