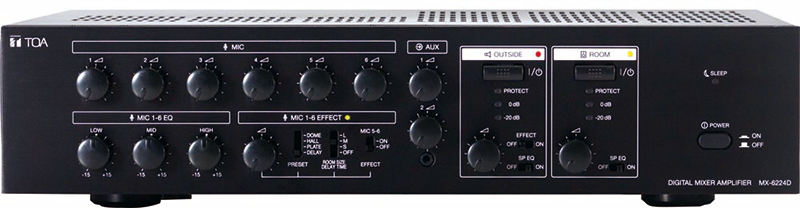

TOA MX-6224D Digital Mixer Amplifier 2x240w. 2 zone

Power Output 240 W × 2 channels (100 V, 42 Ω, rated output)

Power Consumption 100 W (according to IEC60065), 570 W (at rated output, both channels)

Amplification System Class D, Output transformerless galvanic isolated output

Frequency Response 50 Hz - 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input)

Distortion 1 % or less (at 1 kHz, 1/3 rated output power)

• MIC 1: -50 dB (*1) (24 V phantom powered)/-60 dB (*1) (phantom power OFF)
• 600 Ω, electronically-balanced, φ6.3 mm phone jack (3P:balance)
• MIC 2 - 4: -66 dB (*1), 200 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
• MIC 5 - 6: -60 dB (*1), 600 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
• AUX 1: -10 dB (*1), 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair)
• AUX 2: -20 dB (*1), 10 kΩ mixed monaural, unbalanced, φ3.5 mm mini jack (3P:stereo)
• Power am

ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 - 6

6 Microphone volume controls, 2 AUX volume controls, 1 ROOM output switch, 1 ROOM volume control, 1 OUTSIDE output switch, 1 OUTSIDE volume control, 1 Effect control (0 % to 100 %) of Effect bus, 1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY), 1 Effect Room size/Delay time selection switch (L/M/S/OFF), 1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch, 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 - 6, 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 - 6, 1 High EQ control (±15 dB, 12 kHz) for MIC 1 - 6, 1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output, 1 Speaker EQ (BS-1030B, BS-1030W) switch for ROOM output, 1 Power switch, 1 Phantom switch for MIC 1, 1 Phantom switch for MIC 2 - 6 (XLR-3-31)
