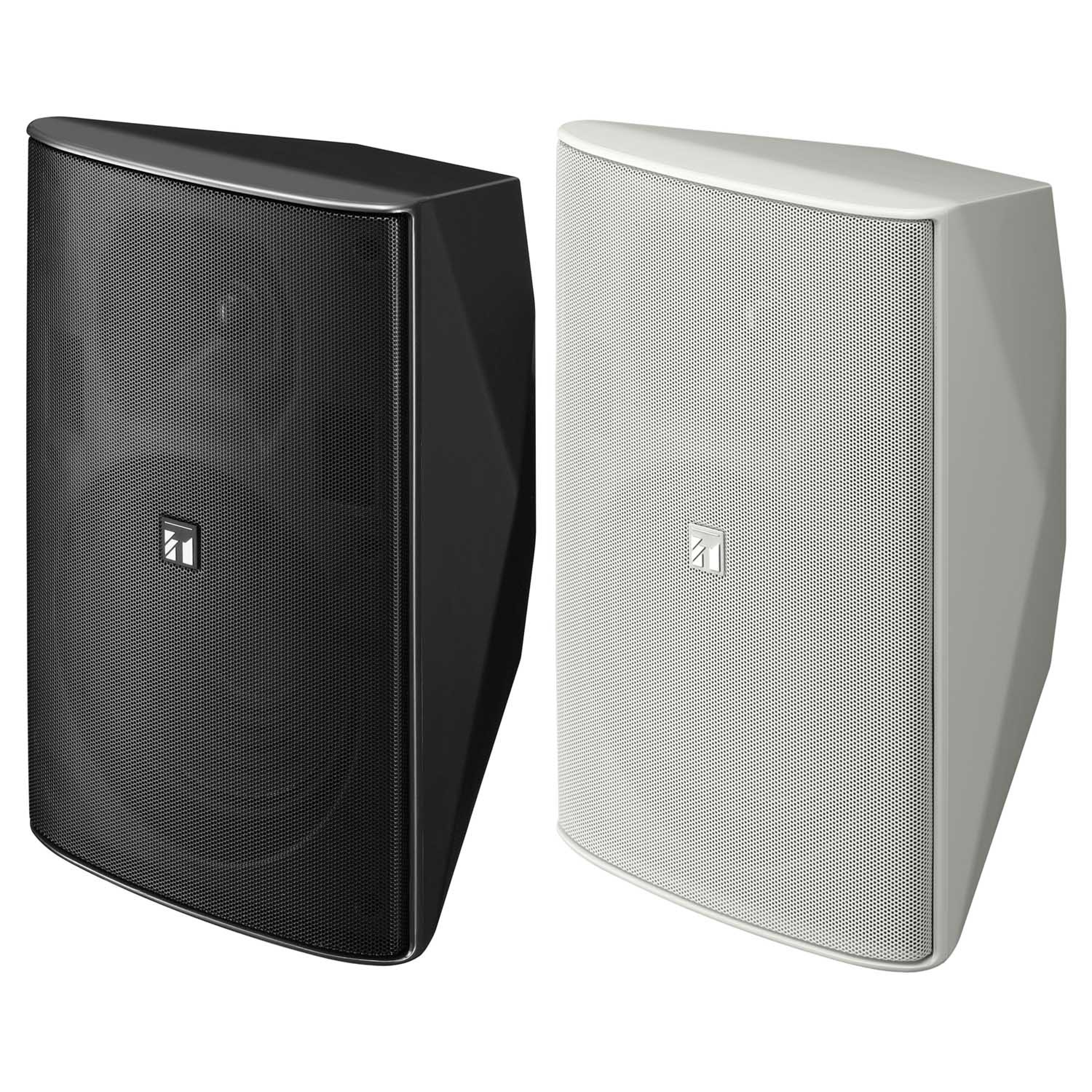

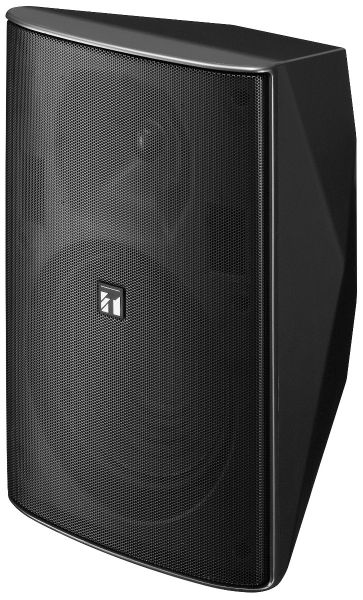

TOA F-1000BT Wide-dispersion Speaker 30-90 w. ราคาต่อใบ /ใช้ได้ท้ง 8 โอห์ม และ 70/100 โวล์ท ไลน์
TOA F-1000BT Wide-dispersion Speaker 30-90 w. ราคาต่อใบ /ใช้ได้ท้ง 8 โอห์ม และ 70/100 โวล์ท ไลน์
|
- ยี่ห้อ : TOA
- รุ่น : F-1000BT
- The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability.
| Enclosure |
Bass-reflex type |
| Rated Input |
15 W (high impedance) |
| Power Handling Capacity |
Continuos pink noise: 30 W (low impedance)
Continuos program: 90 W (low impedance) |
| Rated Impedance |
8 Ω
100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity |
87 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response |
85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency |
5 kHz |
| Directivity Angle |
Horizontal: 90゜, Vertical: 90゜ |
| Speaker Component |
Low frequency: 10 cm (4') cone-type
High frequency: Balanced dome tweeter |
| Input Terminal |
Push-in terminal |
| Finish |
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions |
130 (W) × 202 (H) × 131 (D) mm (5.12' × 7.95' × 5.16') |
| Weight |
2 kg (4.41 lb) (including the supplied brackets) |
| Accessory |
Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set |
| Option |
Board hanger bracket: HY-BH10B,
Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting), |
- ราคาปกติ : 4,000.00 ฿
- ราคาพิเศษ : 3,400.00 ฿
-
|
| |
|
| |
|
|
|
