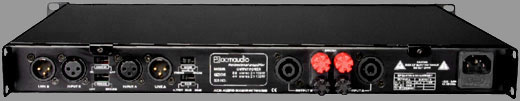

acmaudio Q2100 Power Amplifier 300 w.stereo

เข้าชม 517 | ตอบ 0
acmaudio Q2100 Power Amplifier 300 w.stereo
  • ยี่ห้อ : acmaudio
  • รุ่น : Q2100
  • Technical Specification
    • Rated Power Bridge Mode 8Ω 300 Watts @ 1KHz at < 0.1% T.H.D.
    • Rated Power (2 x 4Ω) 150 Watts per channel @ 1KHz at < 0.1% T.H.D. both channels driven
    • Rated Power (2 x 8Ω) 100 Watts per channel @ 1KHz at < 0.1% T.H.D. both channels driven
    • Input CMRR > -65dB @ 1KHz
    • Power Bandwidth 10Hz - 30KHz ; 0, -0.5dB at rated 80 Watts 8Ω power
    • T.H.D. (2 x 4Ω) < 0.05% @ 100 Watts per channel from 20Hz - 20KHz
    • T.H.D. (2 x 8Ω) < 0.05% @ 100 Watts per channel from 20Hz - 20KHz
    • Rated Power (1 x 4Ω) 180 Watts @ 1KHz at < 0.1% T.H.D.
    • Rated Power (1 x 8Ω) 130 Watts @ 1KHz at < 0.1% T.H.D.
    • Minimum Load Impedance
    • Maximum RMS Voltage Swing 37 Volt
    • Frequency Response 10Hz - 100KHz ; +0, -3dB at 1 Watt
    • Phase Response +5 to -15 from 20Hz to 20KHz
    • Input Impedance 10KΩ balanced
    • Cooling Two temperature dependant variable speed 40 mm. high output DC fans
    • Controls Two front panel attenuators, rear panel mode switch and gain select switch
    • Voltage Gain 0.775V, 32dB or 26dB
    • Crosstalk > -60dB @ 1KHz at rated power @ 8Ω
    • Hum and Noise > -106dB, 'A' weighted referenced to rated power @ 8Ω
    • Slew Rate > 22V/us
    • Dampling Factor (8Ω) > 400:1 @ 20Hz - 1KHz
    • Indicator LEDs 2 clip, 2 signal presence, 1 bridge, 1 active status/protection
    • Protection Thermal, DC, turn-on bursts, incorrect loads
    • Connectors XLR, speakon and binding post speaker output
    • Construction 16 ga. stell
    • Dimensions [HxWxD] 44 x 483 x 350 mm.
    • Net Weight 8 kg.
  • ราคาปกติ : 7,860.00 ฿
  • ราคาพิเศษ : 6,500.00 ฿
