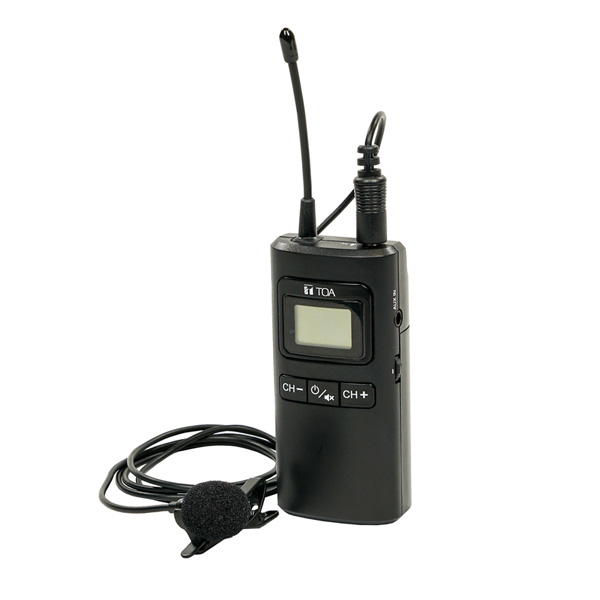

TOA WG-D100T Digital Wireless Guide Receiver (ตัวส่งสัญญาน)
ยี่ห้อ : TOA
รุ่น : WG-D100T
WG-D100T One-way digital wireless guide provides crystal clear sound without interruption, ensuring clear audio transmission at all time. Uses single AA battery with rechargeable options.
Frequency
510 - 530 MHz, 803.3 - 805.7 MHz
Modulation
GFSK
Audio Sampling
8 kHz 16 bit
Latency
22 ms
Frequency Response
65 Hz - 3.8 kHz
Dynamic Range
> 80 dB
Signal to Noise
> 70 dB
THD at 1kHz
< 1.5 %
Service Coverage
Indoor: 100 m / Outdoor: > 150 m
Operating Temperature
-10 °C - 50 °C
RF Output Power
10 mW
3.5mm Phone Jack
Mic In x 1 / AUX In x 1
Microphone Source
Built-in & External
Input Level
Mic: -35.5 dBV / AUX: -25 dBV
Front + & - Buttons
Channel Selector
Power Button
Power On / Off and Mute
Side Momentary 3way Tact Switch
+ : Volume Up
Center Push: Corresponding Frequency
- : Volume Down
Battery Life
Approx. 12 hours (data measured using 1 x AA NiMH 2600 mAh rechargeable battery)
Battery
Ni-MH type 'AA' 1.2V x 1 / Alkaline 'AA' 1.5V x 1
Charging Source
DC 5V Micro USB
Charging Time
Depends on battery type and capacity
Charging Current
255 ± 10 mA
LCD Display
Channel, Battery Indicator, Volume, Signal Strength
Antenna
Whip
Regulatory Compliance
CE FCC
Color
Black Frame
Dimensions
40 (W) × 83.5 (H) × 24.6 (D) mm, Antenna length not included
Weight
38.6 g (battery not included)
Accessory
Lapel Mic x 1, Belt Clip x 1, Lanyard (Black) x 1, Universal USB Adapter x 1, USB Cable x 1
