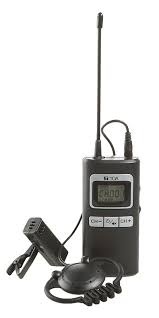

TOA WG-D120T Digital Wireless Guide Transmitter (Dual) *AS*model
ยี่ห้อ : TOA
รุ่น : WG-D120T
* ใช้งานร่วมกับ WG-D120R ตัวรับสัญญาน *
WG-D120T Two-way digital wireless guide provides crystal clear sound without interruption, ensuring clear audio transmission at all time. Uses single AA battery with rechargeable options. Individual mic input and AUX input on transmitter.
Frequency510 - 530 MHz, 803.3 - 805.7 MHz
ModulationGFSK
Audio Sampling8 kHz 16 bit
Latency35 ms
Frequency Response65 Hz - 3.8 kHz
Dynamic Range> 80 dB
Signal to Noise> 60 dB
THD at 1kHz< 5.2 %
Service CoverageIndoor: 100 m / Outdoor: > 150 m
Operating Temperature-10 °C - 50 °C
RF Output Power10 mW
3.5mm Phone JackMic In x 1 / AUX In x 1
Microphone SourceBuilt-in & External
Input LevelMic: -35 dBV / AUX: -20 dBV
Front + & - ButtonsChannel Selector
Power ButtonPower On / Off and Mute
Side Momentary 3way Tact Switch+ : Volume Up ,Center Push: 2-way mode - : Volume Down
Battery LifeApprox. 12 hours (data measured using 1 x AA NiMH 2600 mAh rechargeable battery)
BatteryNi-MH type 'AA' 1.2V x 1 / Alkaline 'AA' 1.5V x 1
Charging SourceDC 5V Micro USB
Charging TimeDepends on battery type and capacity
Charging Current255 ± 10 mA
LCD DisplayChannel, Battery Indicator, Volume, 2-way Communication Indicator, Signal Strength
AntennaWhip
Regulatory ComplianceCE FCC
ColorBlack Frame
Dimensions40 (W) × 83.5 (H) × 24.6 (D) mm, Antenna length not included
Weight38.6 g (battery not included)
AccessoryLapel Mic x 1, Belt Clip x 1, Lanyard (Black) x 1, Universal USB Adapter x 1, USB Cable x 1
