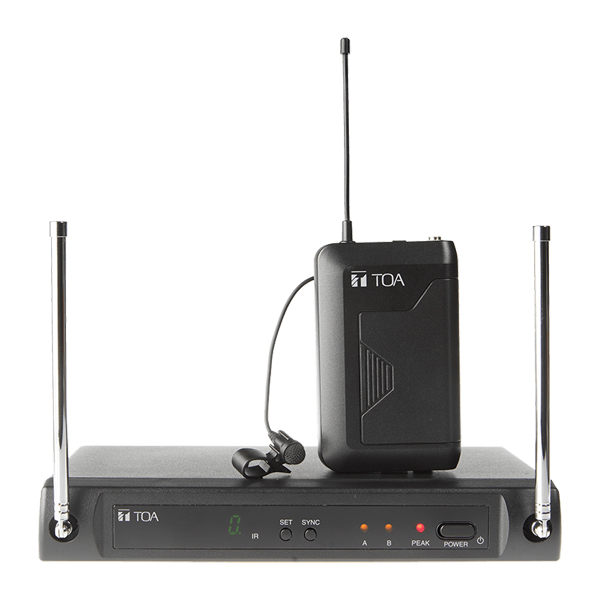

TOA WS-430 Belt pack Single Channel Wireless Set *AS*model*

Product Composition	Wireless Transmitter x 1 Receiver x 1 Lavalier Microphone x 1
Frequency Range	633 - 671 MHz, 803 - 806 MHz, UHF
Channel Selectable	4 channels
Tunable Frequencies	25 kHz Steps
Pilot Tone	32.768 kHz
Total Harmonic Distortion	<1% @ 1kHz
Function	IR sync, Channel scan, Battery Indicator
Accessory	AC adapter x 1 Screw Driver x 1 Lavalier Microphone x 1

Belt pack Wireless Transmitter

Microphone Element	Back electret condenser; Omni-directional
RF Carrier Power	10 mW
Audio Frequency Response	50 - 15,000 Hz
Audio Input Level	-6dBV (Maximum), mic gain 0dB
Modulation System	PLL synthesizer
Battery	1 AA size alkaline battery, 1.5V
Indicator	Battery Status LED, 7 Segments LED
Finish	Resin, coating
Dimensions	62 (W) x 100 (H) x 25 (D) mm (with clip)
Weight	Approx. 85 g (with battery)

Wireless Receiver

Diversity Reception	AC mains (supplied AC-DC adapter must be used)
Sensitivity	10uV at 45dBA S/N
Squelch (SQ)	Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response	50 - 15,000Hz
Audio Output Level (Maximum)	Balanced (XLR socket): -20dBu Unbalanced (1/4' jack socket): 10dBu
Power Supply	11-18 VDC 300mA
Dimensions	215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC)
