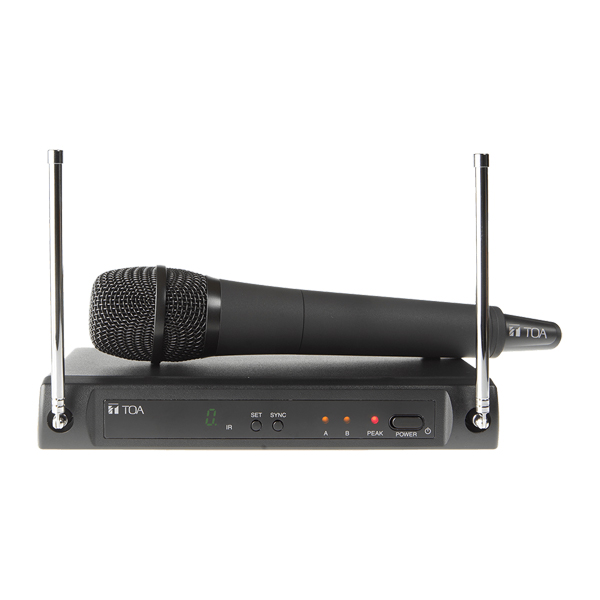

TOA WS-420 Handheld Single Channel Wireless Set

เข้าชม 476 | ตอบ 0

TOA WS-420 Handheld Single Channel Wireless Set

Product Composition	Handheld wireless microphone x 1 Receiver x 1
Frequency Range	633 - 671MHz, 803 - 806 MHz, UHF
Channel Selectable	4 channels
Tunable Frequencies	25 kHz Steps
Pilot Tone	32.768 kHz
Total Harmonic Distortion	<1% @ 1kHz
Function	IR sync, Channel scan, Battery indicator
Accessory	AC adapter x 1 Microphone holder x 1

Handheld Wireless Microphone

Microphone Element	Dynamic with cardioid pattern
RF Carrier Power	10 mW
Audio Frequency Response	80 - 15,000 Hz
Audio Input Level	140 dB SPL (Maximum)
Modulation System	PLL synthesizer
Battery	1 AA size alkaline battery, 1.5V
Battery Life	Approx. 10 hours
Indicator	Battery Status LED, 7 Segments LED
Finish	Resin, coating
Dimensions	Approx. 250 x 50 mm

Wireless Receiver

Diversity Reception	AC mains (supplied AC-DC adapter must be used)
Sensitivity	10uV at 45dBA S/N
Squelch (SQ)	Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response	50 - 15,000Hz
Audio Output Level (Maximum)	Balanced (XLR socket): -20dBu Unbalanced (1/4' jack socket): 10dBu
Power Supply	11-18 VDC 300mA
Dimensions	215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC)
