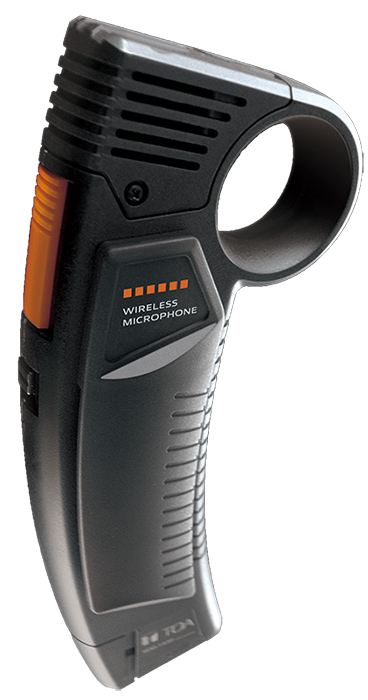

WM-5420 was designed to be suit for tough usage conditions such as stations and retail store. Its “round shape” and “handling hook” ensure not to be dropped easily.
Emission F3E
Frequency Range 636 - 666MHz, 794 - 806MHz, UHF
Channel Selectable 64 channels (the number of channels may differ from country to country)
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
RF Carrier Power 10 mW
Modulation Sensitivity ±4.8 kHz
Maximum Input Level 132 dB SPL (±38kHz Dev.)
EXT Mic Input Level -45 dB* (1kHz ±4.8kHz Dev.)
Microphone Element Unidirectional electret condenser microphone
Frequency Response 200 Hz - 12 kHz
Preemphasis 50us
Antenna Built-in type
Battery AA alkaline dry cell battery
Battery Life Approx. 10 h (when the alkaline battery is used)
Function A/B channels function SW, Talk SW lock, Mic sensitivity Lo/Hi SW Chim function SW, Battery life indicator, AUX microphone input
Operating Temperature -10 ℃ to +50 ℃
Operating Humidity 30 % to 85 %RH
Finish ABS Resin, coating
Dimensions 74 (W) x 184 (H) x 20 (D) mm
