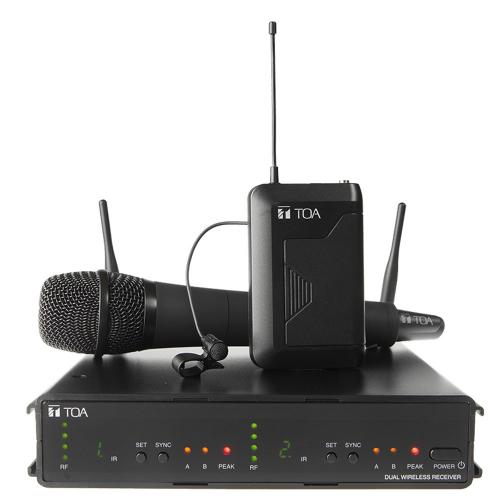

TOA WS-402 Dual Channel Wireless Set Handheld/Lavalier **AS model*
เข้าชม 556
| ตอบ 0
TOA WS-402 Dual Channel Wireless Set Handheld/Lavalier **AS model*
ยี่ห้อ : TOA
รุ่น : WS-402
เช็คสินค้าและราคาได้ที่ 081 829 2449 ,02 045 4549 ราคายังไม่รวมค่าจัดส่งและภาษี
The WS-402 is a dual channel wireless set. The simplest plug and play system, designed to launch you in to the world of wireless. It's rugged and compact frames hold a reliable multifunctioning system that is optimised for use with a range of microphones from handheld, to lapels, to headsets or alternatively can be used with a musical instrument.
Product Composition
Handheld wireless microphone x 1
Wireless transmitter x 1
Receiver x 1
Lavalier Microphone x 1
Frequency Range
633 - 671MHz, 803 - 806 MHz, UHF
Channel Selectable
Up to 16 channels (depending on region)
Tunable Frequencies
25 kHz Steps
Pilot Tone
32.768 kHz
Total Harmonic Distortion
<1% @ 1kHz
Function
IR sync, Channel scan, Battery indicator
Accessory
AC adapter x 1
Microphone holder x 1
Screw driver x 1
Lavalier microphone x 1
Wireless Microphone
Microphone Element
Dynamic with cardioid pattern
RF Carrier Power
10 mW
Audio Frequency Response
80 - 15,000 Hz
Audio Input Level
140 dB SPL (Maximum)
Modulation System
PLL synthesizer
Battery
1 AA size alkaline battery, 1.5V
Battery Life
Approx. 10 hours
Indicator
Battery Status LED, 7 Segments LED
Finish
Resin, coating
Dimensions
Approx. 250 x 50 mm
Wireless Transmitter
Microphone Element
Back electret condenser; Omni-directional
RF Carrier Power
10 mW
Audio Frequency Response
50 - 15,000 Hz
Audio Input Level
-6dBV (Maximum), mic gain 0dB
Modulation System
PLL synthesizer
Battery
1 AA size alkaline battery, 1.5V
Battery Life
Approx. 10 hours
Indicator
Battery Status LED, 7 Segments LED
Finish
Resin, coating
Dimensions
62 (W) x 100 (H) x 25 (D) mm (with clip)
Dual Wireless Receiver
Diversity Reception
AC mains (supplied AC-DC adapter must be used)
Sensitivity
10uV at 45dBA S/N
Squelch (SQ)
Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response
50 - 15,000Hz
Audio Output Level (Maximum)
Balanced (XLR socket): 16dBu
Unbalanced (1/4' jack socket): 10dBu
