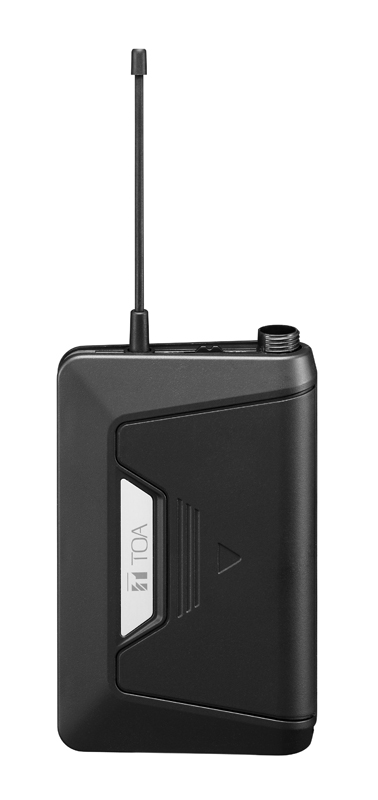

The WM-D5300 Digital wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. This wireless transmitter employs a digital transmission system that is effectively immune to interference.
Frequency Range C4/C7 ver.: 794 - 832 MHz, G1 ver.: 606 - 636 MHz
Modulation type FSK
Channel Selectable 160 channels (The number of channels may differ from country to country.)
RF Carrier Power Less than 50 mW
Maximum Input Level -18 dB (*1) (Sensitivity: L)/-28 dB (*1) (Sensitivity: H)
Audio Frequency Response 100 Hz - 12 kHz
Antenna Lamda/4 whip antenna
ID Selectable 10 patterns
Battery WB-2000 rechargeable battery (option) or AA Alkaline dry cell battery
Battery Life Approx. 8 hours
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Body: ABS resin, black, paint
Dimensions C4/C7 ver.: 62 (W) x 171 (H) x 19 (D) mm (2.44 in x 6.73 in x 0.75 in)
G1 ver/: 62 (W) x 185 (H) x 19 (D) mm (2.44 in x 7.28 in x 0.75 in)
