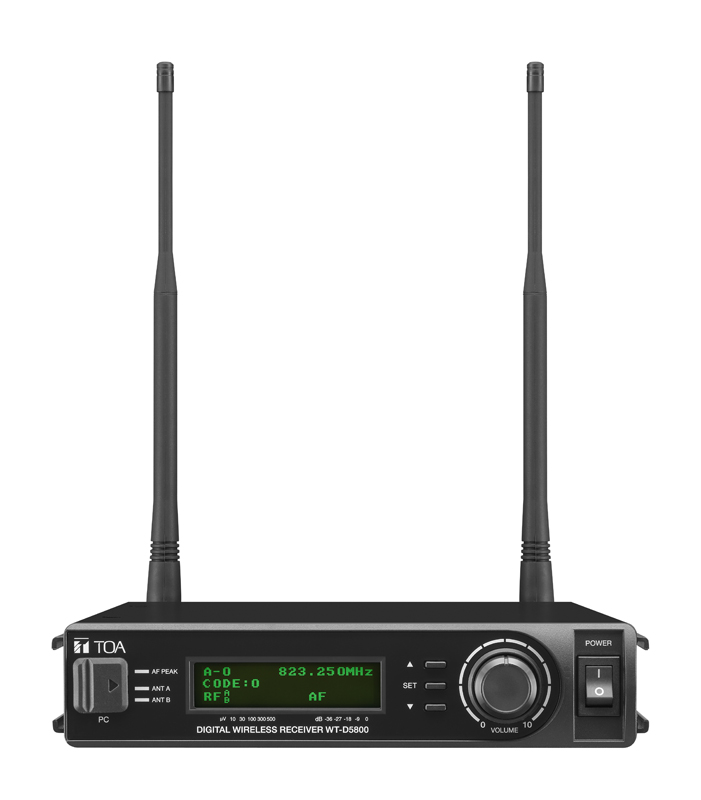

TOA WT-D5800 Digital Wirelesss Microphone Receiver ไม่รวมไมค์
TOA WT-D5800 Digital Wirelesss Microphone Receiver ไม่รวมไมค์
|
- ยี่ห้อ : TOA
- รุ่น : WT-D5800
- The WT-D5800 is a PLL-synthesizer controlled double super-heterodyne diversity receiver designed to be used with a UHF wireless system.
| Power Source |
AC mains (supplied AC adapter must be used) |
| Current Consumption |
350 mA (13.5 V) |
| Frequency Range |
EC4/EC7 ver.: 794 - 832 MHz, EG1/GG1/-G1 ver.: 606 - 636 MHz, RH1 ver.:576 - 606 MHz |
| Channel Selectable |
160 selectable frequencies |
| Receiving System |
Double super-heterodyne |
| Diversity system |
Space diversity (digital diversity) |
| Mixing Output |
MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| Mixing Input |
-20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna Input |
75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| Antenna Output |
75 Ω, BNC (Gain 0 dB) |
| Contact Output |
1 channel, no-voltage make contact output, withstand voltage: 30 V DC, control current 0.5 A max, terminal block (2 pins) |
| Receiving Sensitivity |
24 dBμV or less (Bit error rate:1E-5 or less) |
| Antenna Input Attenuator |
0 dB/-10 dB switchable |
| Indicator |
Audio (5 steps), RF (5 steps), ANT A/B, Audio (peak), Battery alarm |
| Frequency Response |
50 Hz - 12 kHz |
| Total Harmonic Distortion |
0.5 % or less |
| Function |
Frequencies scanning, Feedback suppressor, Equalizer (optimizing each compatible microphone) |
| ID Selectable |
10 patterns |
ให้สามารถเลือกใช้งานร่วมกับ
WM-D52000 ็ Digital Hand Held Microphone @ 22,500 บาท
หรือจะใช้แบบคลิบหนีบ
WM-D5300 Digital Tie-Clip Microphone @ 21,100 บาท
ฺBC=200Y Bettery Charger สำหรับ WM-D5200 ,WM-D5300 ราคาโทรฯสอบถาม
- ราคาปกติ : 20,000.00 ฿
- ราคาพิเศษ : 18,000.00 ฿
-
|
| |
|
| |
|
|
|
