MIPRO AT-90W Wideband Transmitting & Receiving Log Antenna
MIPRO AT-90W Wideband Transmitting & Receiving Log Antenna
|
- ยี่ห้อ : MIPRO
- รุ่น : AT-90W

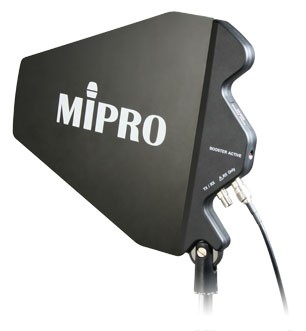

- MIPRO AT-90W is a bi-functional log antenna for professional receiving and transmitting applications. Optimized for 470~1000 MHz, which is compatible with US and EU new telecom regulations.
AT-90W offers users the options of transmitting or receiving based on actual application. Built-in booster power can be provided from a MIPRO AD-707a or ACT Series receivers through the coaxial cables. AT-90W is waterproof and ideal for both indoor and outdoor applications.
|
Frequency Range
|
UHF 470MHz~1000MHz
|
|
Antenna Gain
|
4~6dBi
|
|
Booster Gain
|
RX Connector: 12±1dB ; TX/RX Connector: 0dB
|
|
VSWR
|
≦2:1
|
|
3-dB Beam-width
|
75° Vertical, 130° Horizontal
|
|
Power Consumption
|
RX Connector: 1120mW（8V DC; New Version: 8~15V DC)
TX/RX Connector: 0mW
|
|
Impedance
|
50Ω
|
|
Connector
|
TNC Female x2
|
|
Dimensions
|
319(W)x270(H)x25(D)mm / 12.6(W)x10.6(H)x1.0(D)'
|
|
Weight
|
Approx. 430g / 15.2oz
|
- ราคาปกติ : 11,570.00 ฿
- ราคาพิเศษ : 8,900.00 ฿
-
|
| |
|
| |
|
