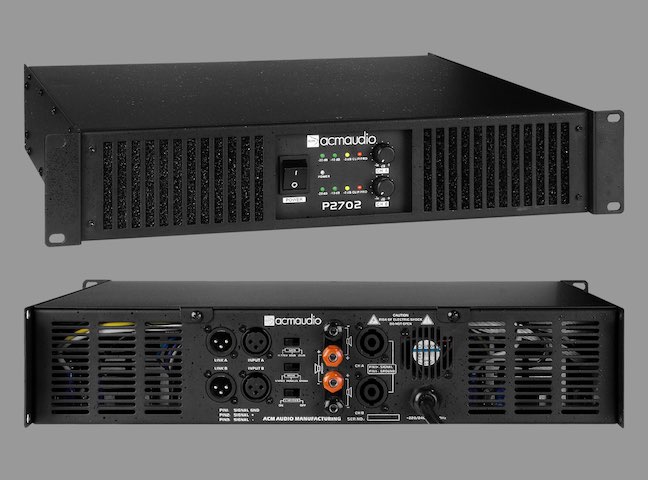

acmaudio P2702 Stereo Power Amplifier 500w.@ 8 Ohms./CH
acmaudio P2702 Stereo Power Amplifier 500w.@ 8 Ohms./CH
|
- ยี่ห้อ : acmaudio
- รุ่น : P2702
Technical Specification
- Rated Power (Stereo 8Ω /ch.) 500W
- Rated Power (Stereo 4Ω /ch.) 800W
- Rated Power (Stereo 2Ω /ch.) 1350W
- Rated Power (Bridge Mono 8Ω) 1500W
- Rated Power (Bridge Mono 4Ω) 2700W
- Sensitivity (volts RMS) 0.775V, 32dB, 26dB
- Frequency Response 20Hz - 25KHz
- Phase Response +10°, -20°
- Signal to Noise Ratio (S/N) ≥ 106dB
- Total Harmonic Distortion (THD) ≤ 0.1%
- Intermodulation Distortion (IMD) ≤ 0.05%
- Dampling Factor ≥ 680
- Crosstalk ≥ -60dB
- Common Mode Rejection (CMR) ≥ -65dB
- DC Output Offset ≤ 10mV
- Input Impedance 20KΩ balanced / 10KΩ unbalanced
- Voltage Gain 40.3dB gain at 0.775V sensitivity
- AC Line Voltage and Frequency ~220-240V and 50/60Hz
- AC Line Current 15A
- Ventilation Flow-through ventilation from front to back
- Cooling Proportional speed fan
- Dimensions [HxWxD] 89 x 483 x 460 mm.
- Net Weight 13 kg.
- ราคาปกติ : 23,200.00 ฿
- ราคาพิเศษ : 22,000.00 ฿
-
|
| |
|
| |
|
