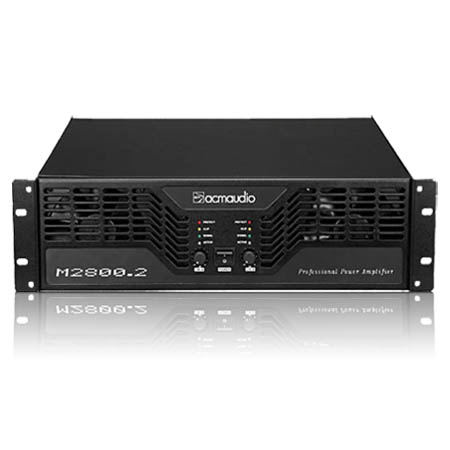

acmaudio M 2800 Stereo Power Amplifier 800 w.
acmaudio M 2800 Stereo Power Amplifier 800 w.
|
- ยี่ห้อ : acmaudio
- รุ่น : M2800
Technical Specification
- Rated Power Bridge Mode 8Ω 2400 Watts @ 1KHz at < 0.5% T.H.D.
- Rated Power (2 x 4Ω) 1200 Watts per channel @ 1KHz at < 0.5% T.H.D. both channels driven
- Rated Power (2 x 8Ω) 800 Watts per channel @ 1KHz at < 0.5% T.H.D. both channels driven
- Input CMRR > -65dB @ 1KHz
- Power Bandwidth 20Hz - 20KHz ; 0, -0.5dB at rated 200 Watts 8Ω power
- T.H.D. (2 x 4Ω) < 0.05% @ 600 Watts per channel from 20Hz - 20KHz
- T.H.D. (2 x 8Ω) < 0.05% @ 400 Watts per channel from 20Hz - 20KHz
- Rated Power (1 x 4Ω) 1300 Watts @ 1KHz at < 0.5% T.H.D.
- Rated Power (1 x 8Ω) 860 Watts @ 1KHz at < 0.5% T.H.D.
- Minimum Load Impedance 2Ω
- Maximum RMS Voltage Swing 93 Volt
- Frequency Response 10Hz - 50KHz ; +0, -3dB at 1 Watt
- Phase Response +20° to -25° from 20Hz to 20KHz
- Input Impedance 20KΩ balanced / 10KΩ unbalanced
- Cooling Two temperature dependant variable speed 120 mm. high output DC fans
- Controls Two front panel attenuators, rear panel mode switch and gain select switch
- Voltage Gain 0.775V, 32dB or 26dB
- Crosstalk > -60dB @ 1KHz at rated power @ 8Ω
- Hum and Noise > -104dB, 'A' weighted referenced to rated power @ 8Ω
- Slew Rate > 25V/us
- Dampling Factor (8Ω) > 800:1 @ 20Hz - 1KHz
- Indicator LEDs 2 clip, 2 signal presence, 2 active status, 2 protection
- Protection Thermal, DC, turn-on bursts, incorrect loads

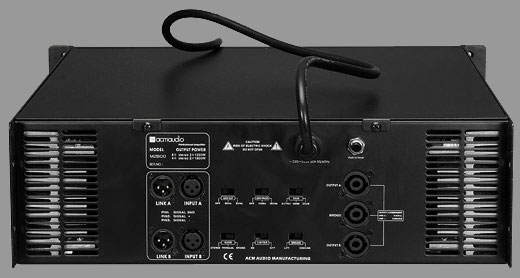

- Connectors XLR, speakon and binding post speaker output
- Construction 16 ga. stell
- Dimensions [HxWxD] 132 x 483 x 498 mm.
- Net Weight 32 kg.
- ราคาปกติ : 26,500.00 ฿
- ราคาพิเศษ : 25,000.00 ฿
-
|
| |
|
| |
|
|
|
