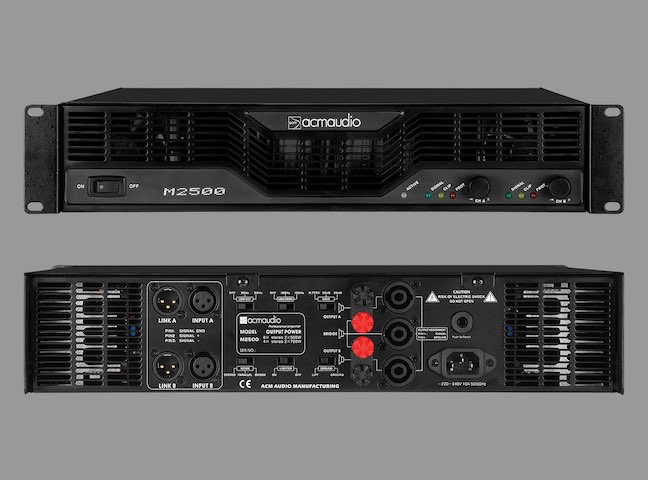

acmaudio M2500 Stereo Power Amplifier 500 w.
acmaudio M2500 Stereo Power Amplifier 500 w.
|
- ยี่ห้อ : acmaudio
- รุ่น : M2500
- ตรวจสอบสินค้าก่อนสั่งซื้อ AIS 081 829 2449
บริการ ฟรี งานออกแบบ วางระบบ ปรับปรุงระบบเดิมใหม่ 081 839 9788 ทุกวัน ไม่หยุด
Technical Specification
- Rated Power Bridge Mode 4Ω 2250 Watts @ 1KHz at < 0.1% T.H.D.
- Rated Power (2 x 2Ω) 1125 Watts per channel @ 1KHz at < 0.1% T.H.D. both channels driven
- Rated Power (2 x 4Ω) 750 Watts per channel @ 1KHz at < 0.05% T.H.D. both channels driven
- Rated Power (2 x 8Ω) 500 Watts per channel @ 1KHz at < 0.025% T.H.D. both channels driven
- Rated Power (1 x 2Ω) 1260 Watts @ 1KHz at < 0.1% T.H.D.
- Power Bandwidth 10Hz - 30KHz ; 0, -3dB at rated 350 Watts 8Ω power
- T.H.D. (2 x 2Ω) < 0.1% @ 900 Watts per channel from 20Hz - 20KHz
- T.H.D. (2 x 4Ω) < 0.1% @ 600 Watts per channel from 20Hz - 20KHz
- T.H.D. (2 x 8Ω) < 0.1% @ 400 Watts per channel from 20Hz - 20KHz
- Input CMRR > -65dB @ 1KHz
- Rated Power (1 x 4Ω) 840 Watts @ 1KHz at < 0.05% T.H.D.
- Rated Power (1 x 8Ω) 560 Watts @ 1KHz at < 0.025% T.H.D.
- Minimum Load Impedance 2Ω
- Maximum RMS Voltage Swing 77 Volt
- Frequency Response 10Hz - 100KHz ; +0, -3dB at 1 Watt
- Phase Response +5 to -15 from 20Hz to 20KHz
- Input Impedance 10KΩ balanced
- Cooling Two temperature dependant variable speed 80 mm. high output DC fans
- Controls Two front panel attenuators, rear panel mode switch and gain select switch
- Voltage Gain 0.775V, 32dB or 26dB
- Crosstalk > -60dB @ 1KHz at rated power @ 8Ω
- Hum and Noise > -107dB, 'A' weighted referenced to rated power @ 8Ω
- Slew Rate > 30V/us
- Dampling Factor (8Ω) > 700:1 @ 20Hz - 1KHz
- Indicator LEDs 2 clip, 2 signal presence, 1 active status, 2 protection
- Protection Thermal, DC, turn-on bursts, subsonic, incorrect loads
- Connectors XLR, speakon and binding post speaker output
- Construction 16 ga. stell
- Dimensions [HxWxD] 89 x 483 x 496 mm.
- Net Weight 23 kg.
- ราคาปกติ : 19,600.00 ฿
- ราคาพิเศษ : 18,000.00 ฿
-
|
| |
|
| |
|
|
|
