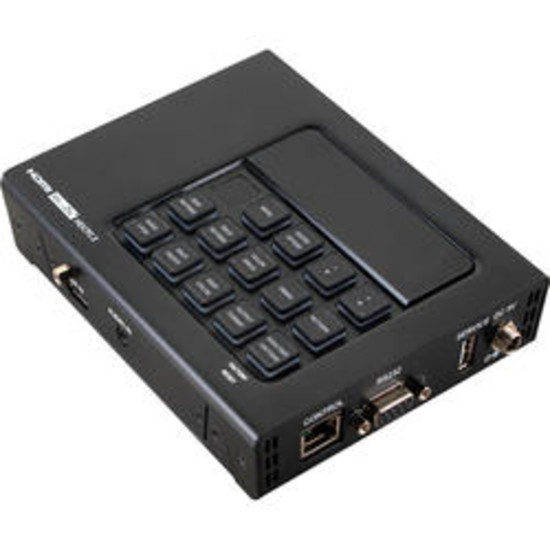

CYP CPHD-V4 4K HDR HDMI Signal Generator & Analyzer
ยี่ห้อ : CYP
รุ่น : CPHD-V4
This HDMI Signal Generator & Analyzer is an advanced and handy tool for generating, testing and verifying the signal path within your 18Gbps HDMI ecosystem. With 90 built-in resolutions, 58 test patterns and over a dozen types of A/V analysis functions, this unit provides an enormous range of testing options. HDMI data packet, EDID and HDCP analysis is supported along with EDID upload and emulation.
HDMI 2.0 (up to 4K@60Hz 4:4:4) and DVI 1.0 compliant
HDCP 1.4 and 2.2 compliant
Analysis of source and sink data paths up to 18Gbps HDMI signals
Analysis of HDMI data packets
Analysis and control of HDCP v1.4 and v2.2
Analysis and emulation of EDID data, including SCDC
Analysis of input audio signals
HDR bypass and analysis support
Generate HDMI timings up to 18Gbps (4096×2160@60Hz 4:4:4, 8-bit)
Generate HDMI and VGA signal outputs
2 custom user test pattern resolutions - 640×480 & 1920×1080
External stereo audio input and output
Generation of LPCM sinewave audio on up to 8 channels
Front-panel, RS-232, Telnet, and IR Remote controls
OLED display with rapid updates of current status information
Detailed OSD for settings and informational displays
Supports USB firmware and pattern update
Small and portable unit

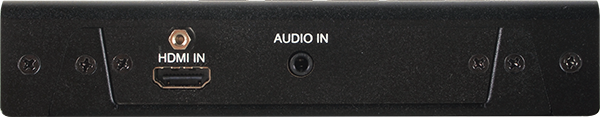

Inputs
1x HDMI [1x Uncompressed AV and Data]
1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
1x 9-pin D-sub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Type A [1x SERVICE Propriety Data]
Outputs
1x HDMI [1x Uncompressed AV and Data]
1x 15-pin D-sub [1x VGA RGBHV]
1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
