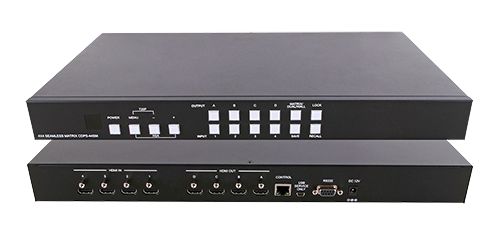

The 4 by 4 HDMI Seamless Matrix Switcher allows the signal from 4 different input sources to be freely selected and arranged on 4 displays (TV or monitor), providing four output modes (Matrix, Dual PoP/ PiP, Quad and TV Wall) for various applications.
HDMI, HDCP1.1 and DVI compliant
Deep color support 8/10/12 bit source
Seamless switching
Supports four different modes: Matrix mode/ Dual mode/ Quad / TV Wall mode
- Matrix mode: Can routes and output any 4 source to any 4 displays with seamless switching (Note: Under output timing 1080i@50/60 input 4 will be disabled, OSD will show 'IN 4 Disabled')
- Dual mode: Can display POP (Picture Of Picture) & PiP (Picture In Picture) image com-bined by 2 sources to be presented on the HDMI output ports (Dual A and Dual B)
- Quad mode: Can output all sources to a display (4 in 1) as a full image
- TV Wall mode: Can output any source to 4 displays (2 by 2 Video wall) as a full image with adjustable Bezel Correction for 4 displays
Supports OSD, RS232, Telnet, WebGUI, Remote control and on-panel controls
Input resolutions support VGA~WUXGA and 480i~1080p
Output resolutions support 480p~1080p
Supports different input resolution and output resolution selectable from OSD menu (factory default value for the output resolution is 720p@60Hz/ 2CH LPCM)
