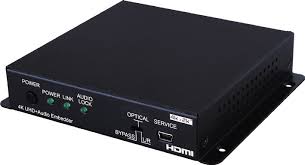

CYP CPLUS-V11PI 4K60 (4:4:4) HDMI Audio Inserter with EDID Management & RS-232 Control
ยี่ห้อ : CYP
รุ่น : CPLUS-V11PI
This HDMI Audio Inserter is designed to insert an external audio signal (analog or digital) into any HDMI or DVI source signal to generate an HDMI compliant output with new audio. Both stereo LPCM 2.0 and multi-channel Bitstream audio is supported for insertion and the preferred source can be selected with a simple switch.
HDMI input and output with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compatible with the use of an HDMI-DVI adaptor
HDCP 1.4 and 2.2 compliant
Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
Supports 48-bit Deep Color up to 1080p@60Hz
Supports passthrough of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
Supports embedding external audio sources (analog stereo or digital S/PDIF) into an existing HDMI source, or adding audio to a DVI source (output as HDMI)
Supports HDMI audio sampling rates up to 192kHz
Supports the following S/PDIF audio sampling rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
Provides EDID management with EDID bypass and 2 user modifiable EDIDs
PC based EDID management tool support
Outputs a 720p60 color bar pattern when no input is connected
Supports RS-232 style control via a Virtual COM port over USB
Inputs1x HDMI [1x Uncompressed AV and Data]
1x TOSLINK [1x OPTICAL 2 Channel LPCM]
2x RCA [1x Stereo (L/R)]
1x USB Mini-B [1x CONTROL / SERVICE Propriety Data]
Outputs1x HDMI [1x Uncompressed AV and Data]
PSU:5V/2.6A
Dimensions128mm [W] x 116mm [D] x 30mm [H]
Net Weight358g
Product enquires
3D Full HD4K Pass Through4K@60 4:4:4Deep Colour - 10bitDeep Colour - 12bitDeep Colour - 8bitHDCP 2.2HDMI
