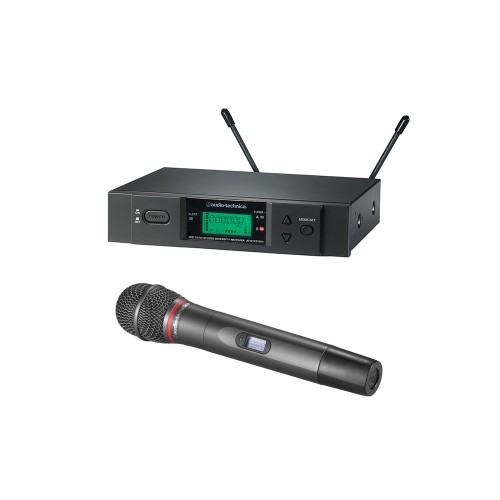

- ATW-R3100b receiver
- ATW-T341b handheld cardioid dynamic microphone/transmitter
- Nine pre-coordinated frequency scan groups
- True Diversity operation reduces dropouts
- Advanced digital Tone Lock™ squelch function fights interference
Operating Frequencies UHF band
- 606.000 – 631.000 MHz (U Band – covering TV Ch. 38)
- 541.500 – 566.375 MHz (C Band)
- 655.500 – 680.375 MHz (D Band)
- 721.500 – 746.375 MHz (G Band) Discontinued
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Minimum Frequency Step 25kHz
Modulation Mode FM
Maximum Deviation ±35 kHz
Frequency Response 70 Hz to 15 kHz (+1 dB, -3 dB)
Operating Range 100m (300'), typical
Dynamic Range > 110 dB (A-weighted), typical
Total Harmonic Distortion < 1% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range -5º C to +45º C (23º F to 113º F)
