สินค้า Wireless Microphone - JTS JTS UF-20S V2/UF-20TB Single Channel Lavalier Wireless Microphone

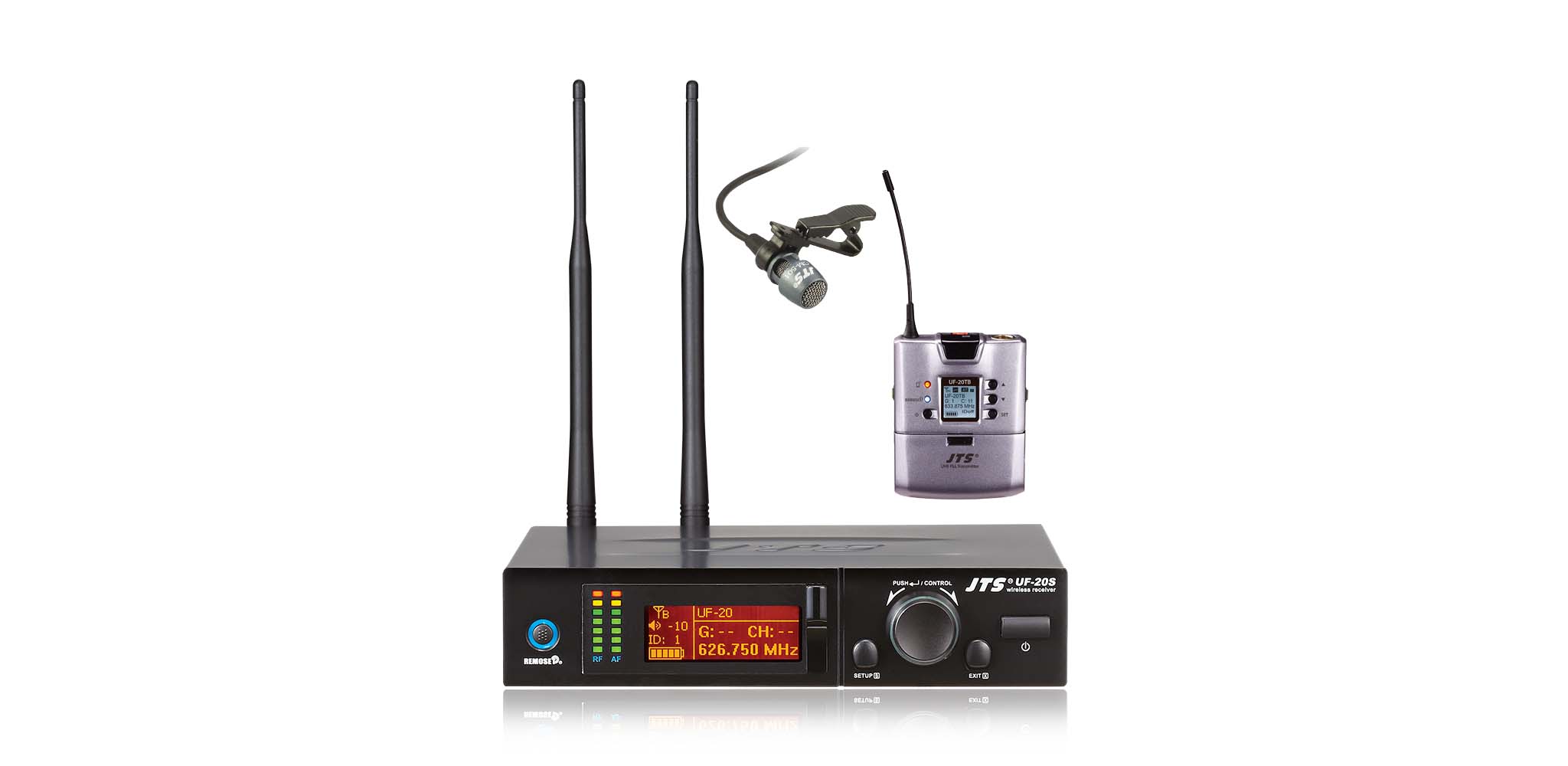

JTS UF-20S V2/UF-20TB Single Channel Lavalier Wireless Microphone

เข้าชม 1182 | ตอบ 0
JTS UF-20S V2/UF-20TB Single Channel Lavalier Wireless Microphone
  • ยี่ห้อ : JTS
  • รุ่น : UF-20S/UF-20TB
  • JTS  UF-20S/UF-20TB  Sigle Channel Lavalier Wireless Microphone

    UF-20S V2  Single Channel Wide Band  True Diversity Receiver
    • Frequency Preparation  PLL Synthesized Control
    • Frequency Setting JTS patented obstacles-free RF REMOSET
    • Carrier Frequency Range UHF 470~960 MHz
    • Channel Single
    • Bandwidth 60~75MHz Wideband
    • S / N Ratio > 108dB (A)
    • T.H.D <0.5% @ 1KHz
    • Chassis 1U/2U standard metal chassis
    • Preset Channels / Group
    * From group 1 ~ 15 up to 63 interference-free compatible channels.

    * 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
    • * User programmable from U1 ~ U6 each of 64 channels reserved.
    • Display LCD
    • Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
    • Sensitivity 6dBμV, at S / N> 80dB
    • Receiving Mode True diversity
    • Audio Output Level Maximum 6dBu
    • Receiving Mode True diversity
    • Audio Output Level Maximum 6dBu
    • AF Output Impedance 600Ω
    • Frequency Response 50Hz ~ 18kHz, with high-pass filter
    • Squelch Pilot Tone & Noise Mute
    • Power Supply 100 ~ 240V or 12V DC
    • Output Connector 1 XLR Balanced Socket
    • 1 Ø6.3mm Unbalanced phone jack
    UF-20TB Bodypack Transmitter
    • Frequency Preparation PLL Synthesized Control
    • Carrier Frequency Range UHF 470~960 MHz
    • Bandwidth 60~75MHz Wideband
    • RF Outputs Low / High
    • Stability < ±10KHz
    • Frequency Deviation ± 48KHz (Peak)
    • Chassis Aluminium alloy
    • LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
    • Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
    • Output Connector 4P Mini XLR
    • Spurious Emissions <-50 DBC
    • Audio Frequency Response 50Hz ~ 18k Hz
    • Battery AA NiMH x2
    • Dimensions 62mm (W) x80.3mm (H) x22.6mm (D)
    • Weight 93g
  • ราคาปกติ : 31,900.00 ฿
  • ราคาพิเศษ : 28,710.00 ฿
