The MFP62 provides enhanced features Including video scaling on output, MIC input with phantom power and audio mixing. The MFP62 also features Web GUI for control and configuration, analogue audio embedding, audio de-embedding, and control via front panel, IR, RS-232 and TCP/IP.

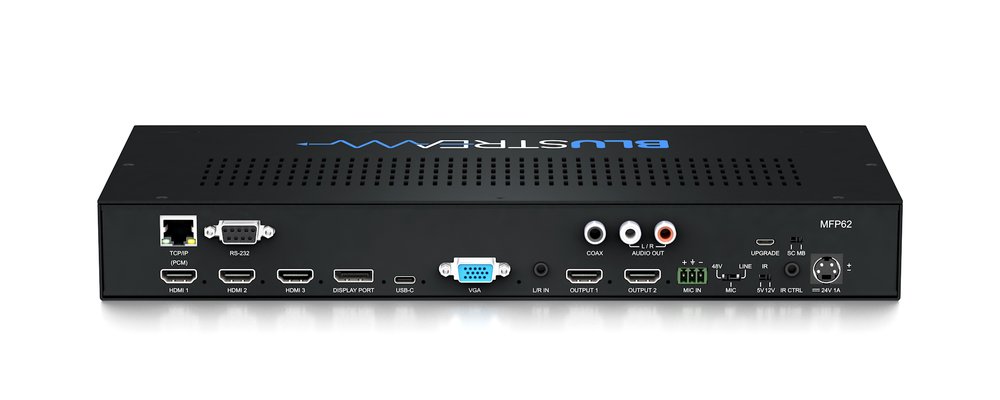

Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Display Port™, 1 x VGA
Video Output Connectors: 2 x HDMI Type A, 19-pin, female
Audio Input Connectors: 1 x analogue left / right audio (3.5mm stereo jack)
MIC Input Connectors: 1 x 3-pin Phoenix connector
Audio Output Connectors: 1 x RCA (S/PDIF), 2 x RCA analogue left / right
RS-232 Serial Ports: 1 x 9-pin RS-232 connector
TCP/IP Control: 1 x RJ45, female
IR Input Ports: 1 x 3.5mm stereo jack
Product Upgrade: 1 x Micro USB female
Rack-Mountable: 1U rack height, rack ears included
Casing Dimensions (W x H x D): 344mm x 44mm x 168mm, without feet
Shipping Weight: 3kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
