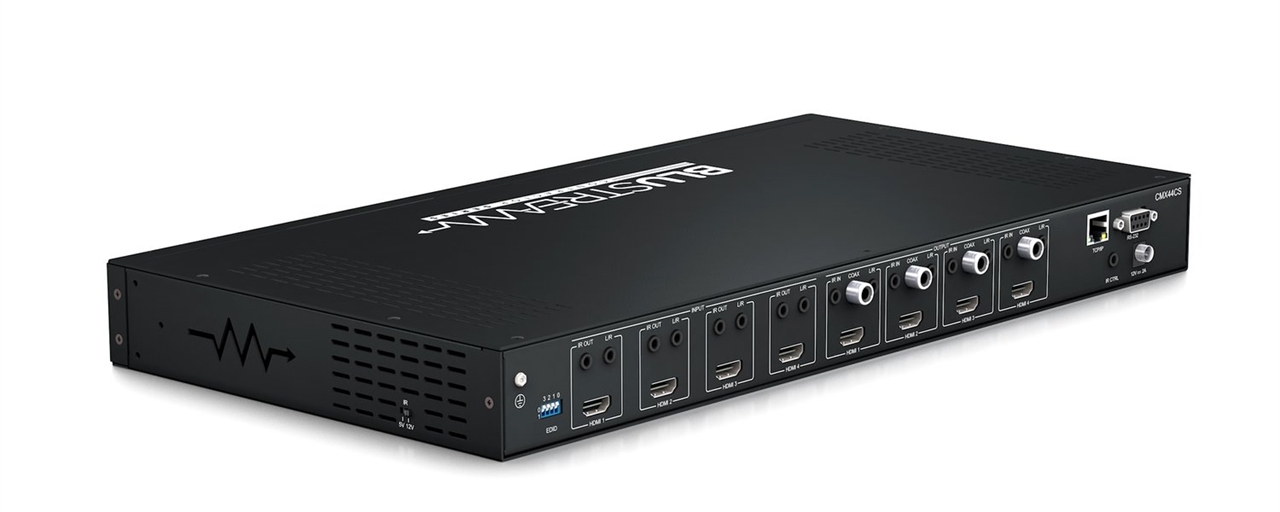

Blustream CMX44AB 4x4 HDMI 2.0 4K HDCP 2.2 Matrix with Audio Breakout, EDID Management and IR Routing
ยี่ห้อ : Blustream
รุ่น : CMX44AB
The CMX44AB supports HDMI 2.0 and HDCP 2.2, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed as required within a matrix configuration.
Specifications
Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking
Video Output Connectors: 4 x HDMI Type A, 19-pin, female, locking
Audio Output Connectors: 4 x RCA (S/PDIF), 4 x Analogue audio L/R (3.5mm stereo jack)
RS-232 Serial Port: DB-9, female
IR Input Ports: 5 x 3.5mm stereo jack
IR Output Ports: 4 x 3.5mm mono jack
Mounting Kit Included
Unit Dimensions (W x D x H): 313mm x 129mm x 45mm (without feet or connections)
Unit Dimensions (W x D x H): 313mm x 140mm x 47mm (with feet and connections)
Shipping Weight: 2.2kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
