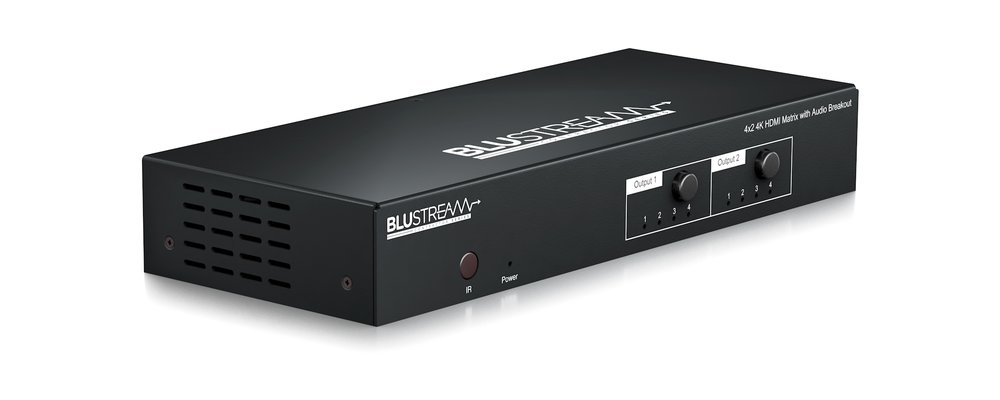

Blustream CMX42AB 4x2 HDMI 2.0 4K HDCP 2.2 Matrix with Audio Breakout, EDID Management and IR Routing
เข้าชม 835
| ตอบ 0
Blustream CMX42AB 4x2 HDMI 2.0 4K HDCP 2.2 Matrix with Audio Breakout, EDID Management and IR Routing
ยี่ห้อ : Blustream
รุ่น : CMX42AB
The CMX42AB supports HDMI 2.0 and HDCP 2.2, allowing distribution of four HDMI sources to two displays. This enables all sources to be viewed as required within a matrix configuration. Specifications
Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking
Video Output Connectors: 2 x HDMI Type A, 19-pin, female, locking
Audio Output Connectors: 2 x RCA (S/PDIF), 2 x Analogue audio L/R (3.5mm stereo jack)
RS-232 Serial Port: DB-9, female
IR Input Ports: 3 x 3.5mm stereo jack
IR Output Ports: 4 x 3.5mm mono jack
Mounting Kit Included
Unit Dimensions (W x D x H): 255mm x 104mm x 40mm (without feet or connections)
Unit Dimensions (W x D x H): 255mm x 115mm x 47mm (with feet and connections)
Shipping Weight: 1.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 12V/2A DC
1 x CMX42AB Matrix 1 x 12V/2A DC Power Supply 1 x Remote Control 4 x IR Emitter 3 x IR Receiver 1 x Mounting Kit 1 x Quick Reference Guide
