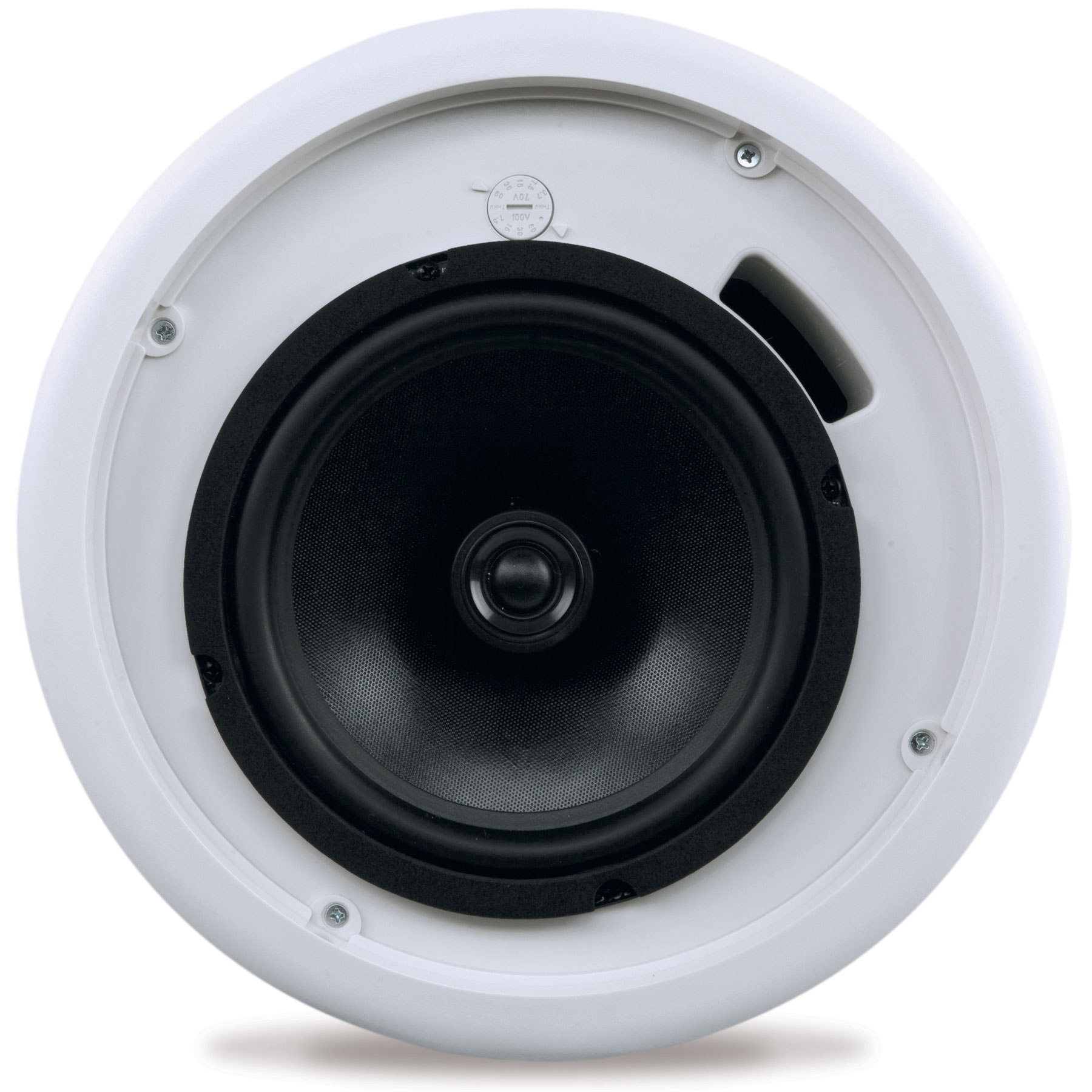

High quality 8” full-range transducer provides exceptional clarity through the critical voice range.
Ported baffle for increased low frequency extension down to 70 Hz.
Low-saturation 70V/100V transformers with 8-ohm bypass.
4-pole Euroblock connector for easy system wiring.
White (RAL 9010) with UV inhibitors to match complementing QSC product families.
Specifications AC-C8T-nb
Transducer 200 mm [8 in.] weather resistant paper cone
Rated noise power [rms] (1) 6 W
Nominal Impedance 8Ω
Transformer taps:
70 V 6, 3, 1.5, 0.75 W
100V 6, 3, 1.5 W
Effective frequency range (2) 53 Hz - 20 kHz
Rated Coverage(3) 130° conical
Directivity Factor 5.6
Directivity Index [dB] 7.5
Sensitivity (4) 96 dB
Maximum continuous SPL (5) 104 dB
Maximum peak SPL (5) 110 dB
Baffle material ABS
Grille material Powder coated steel
Cutout Dimensions Ø 254 mm [Ø 10 in]
Net weight 1.5 kg [3.4 lb]
Product dimensions (Diameter x Height) Ø 283 x 84 mm [Ø 11.14 x 3.3 in.]
