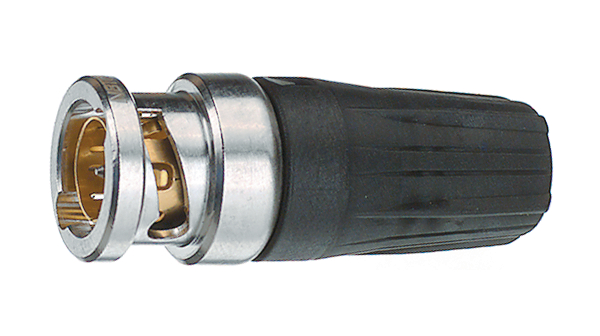

NEUTRIK NBNC75BLP9 BNC Crimp Plug Male for RG-59
NEUTRIK NBNC75BLP9 BNC Crimp Plug Male for RG-59
|
- ยี่ห้อ : Neutrik
- รุ่น : NBNC75BLP9
- สินค้ามีค่าจัดส่ง เริ่มต้นที่ 100 บาท สั่งจำนวนมากราคาพิเศษ AIS 081 829 2449
NBNC75BLP9 สำหรับสายมาตรฐาน ดังนี้
(Belden 1505A , Belden 4505R, Belden 8241F, Canare L-4CFB ,CommScope 5565 )
NBNC75BTU11 BNC Crimp Plug for RG-6
NBNC75BTY11 BNC Crimp Plug for RG-6
(Belden 1694A (ANH), Belden 4694R, Canare L-4.5CHD,CommScope 5765)

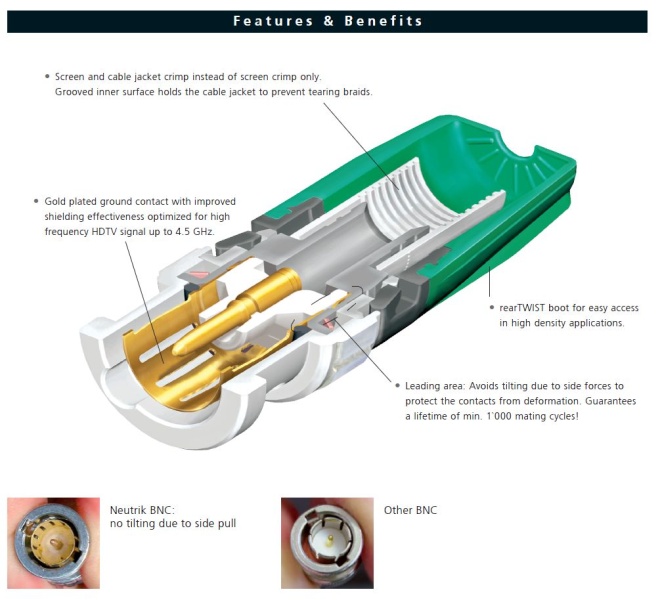

Features & Benefits
- “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 Ω design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
- Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)
- ราคาปกติ : 245.00 ฿
- ราคาพิเศษ : 221.00 ฿
-
|
| |
|
| |
|
|
|
