CYP CH-1602RXWPUS HDMI/USB OVER CAT5E/6 /7 WALLPLATE RECEIVER WITH 48V POH, LAN SERVING, AND BI-DIRECTIONAL OPTICAL AUDIO RETURN
CYP CH-1602RXWPUS HDMI/USB OVER CAT5E/6 /7 WALLPLATE RECEIVER WITH 48V POH, LAN SERVING, AND BI-DIRECTIONAL OPTICAL AUDIO RETURN
เข้าชม 1071
| ตอบ 0
CYP CH-1602RXWPUS HDMI/USB OVER CAT5E/6 /7 WALLPLATE RECEIVER WITH 48V POH, LAN SERVING, AND BI-DIRECTIONAL OPTICAL AUDIO RETURN
ยี่ห้อ : CYP
รุ่น : CH-1602RXWPUS
This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports. With LAN serving connection and external digital and analog audio capability that gives users the convenience of additional audio connection. This system also allows the connection of any USB host, enabling a USB connection to up to 2 USB ports, giving the Receiver the ability to act like a USB hub. The 48V PoH design can power the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver.
Supports HDBaseT 2.0 specification transmitting 4K@30 or 4K@60 YUV420 video signal over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft
Receiver features 2 USB 2.0 ports
HDMI (with 3D & 4K2K@60 YUV420 support), HDCP 2.2 and DVI compatible
HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, Power over HDBaseT (PoH) and Control (Bidirectional IR/RS-232 passthrough)
Supports passthrough of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio
Supports 10/100 Ethernet network connection
Supports external analog and digital audio transmission
Supports ARC function from HDMI out to both HDMI in and optical output
Supports RS-232 baud rate from 110~115200bps

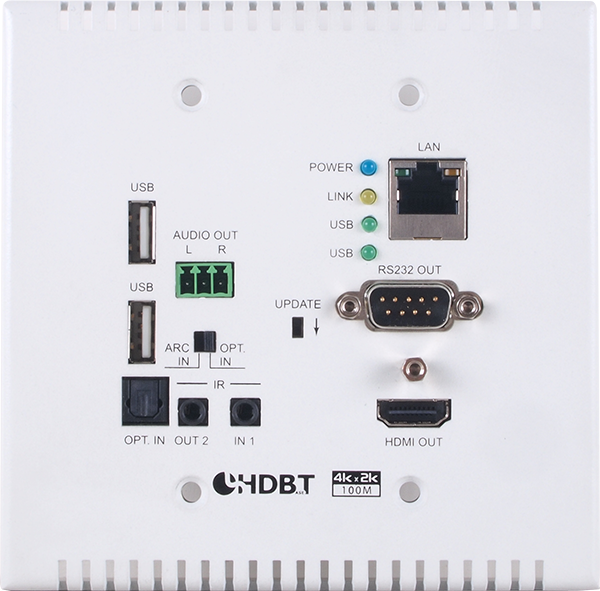

US 2 gang wall-plate design and installation friendly
Inputs 1x HDMI [1x Uncompressed AV and Data]
3x 1-Pin Terminal Block [1x Stereo (L/R)]
2x USB Type A [2x Propriety Data]
1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
Outputs 1x RJ45 [1x HDMI & Propriety Data]
1x TOSLINK [1x 2 Channel LPCM / Dolby Digital / DTS]
1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
1x 9-pin D-sub [1x RS-232 Data]
1x RJ45 [1x LAN Serving]
PSU: 48V/0.83A
Dimensions 125mm [W] x 41mm [D] x 127mm [H]
Net Weight 315g
