CYP CH-507RXWPUS HDMI OVER CAT5E/6/7 WALLPLATE RECEIVER WITH BI-DIRECTIONAL 24V POC AND LAN SERVING
CYP CH-507RXWPUS HDMI OVER CAT5E/6/7 WALLPLATE RECEIVER WITH BI-DIRECTIONAL 24V POC AND LAN SERVING
เข้าชม 766
| ตอบ 0
CYP CH-507RXWPUS HDMI OVER CAT5E/6/7 WALLPLATE RECEIVER WITH BI-DIRECTIONAL 24V POC AND LAN SERVING
ยี่ห้อ : CYP
รุ่น : CH-507RXWPUS

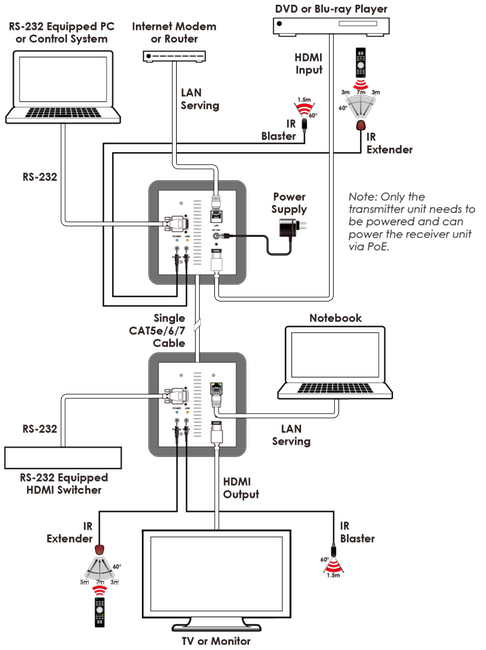

The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has Power over Ethernet (PoE) functionality that allows for greater flexibility in installations.
HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
Supports HDCP repeater and CEC bypass functions
Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft
HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, Power over Ethernet (PoE) and IR/RS-232 Control pass-through
Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz)
Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
US 2Gang wall-plate design and installation friendly
