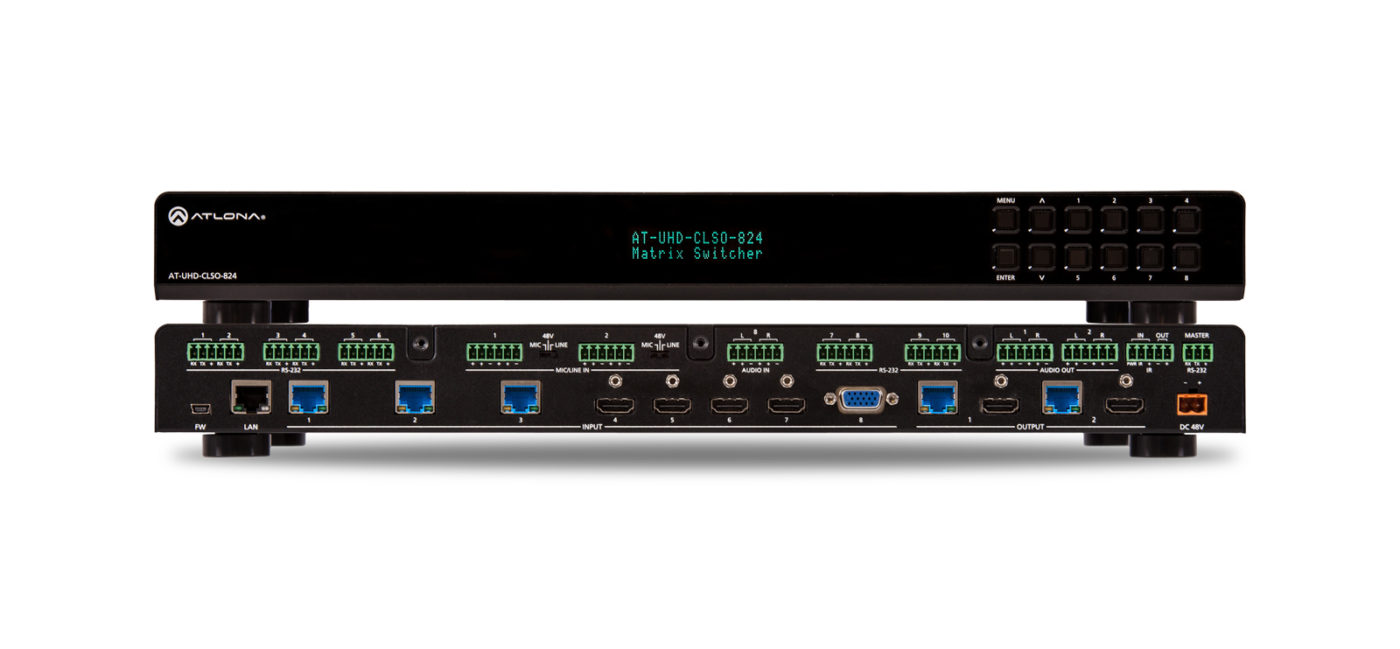

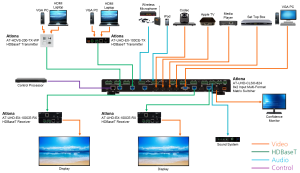

8×2 matrix switcher with HDBaseT and HDMI ports for each output
Eight different sources may be switched to either of two outputs with mirrored HDBaseT/HDMI signals
Serves a wide array of room configurations
Three HDBaseT inputs
Works with Atlona AT-HDVS-150 or AT-HDVS-200 transmitters for placement at remote sources near lecterns, conference tables, and instructor’s desks
Simplifies integration of remote sources by eliminating power supplies when used with PoE-powered transmitters; single category cable carries AV signals, control and power
Four HDMI inputs
Digital inputs to support up to four HDMI sources or DisplayPort and DVI sources with appropriate adapters
Ideal for sources located at the equipment rack
One multi-function analog input on 15-pin HD connector
Accepts RGBHV and component signals using common adaptors and break out cables
Provides input options for legacy analog sources
Two Ethernet enabled, HDBaseT outputs
Extends control signals from third party control processors via HDBaseT along with 4K/UHD video, and audio through a single cable with 330 foot (100 m) performance
Network connections simplify control system design; eliminates multiple cable runs between source, control system router and display
Audio output matrix mixer
Mixes de-embedded digital audio along with analog mic/line level inputs and routes to analog outputs or re-embed to video outputs
Eliminates the need for complex external audio routing systems
Two, balanced, stereo audio outputs on 6-pin captive screw connectors
Maintains proper audio gain structure between commercial line level devices; eliminates adaptors
Designed for use with analog commercial sound systems
Mirrored outputs on HDBaseT and HDMI
Each matrix output supports dual display applications for a local display and extended distance displays up to 330 feet (100 meters)
Eliminates cost associated with extra extension components; simplifies installation. HDMI output allows additional HDBaseT transmitter for dual, long distance applications
4K/UHD @ 60 Hz capability
Compatible with Ultra High Definition sources and displays up to 4K @ 60 Hz with 4:2:0 color subsampling
Supports high resolution applications such as CAD, desktop publishing, and detailed financial reporting
Power over Ethernet for remote-powered HDBaseT receivers
Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT
No local AC outlet required saves time and integration costs TCP/IP, RS-232, and IR, control
Compatibility with third-party control systems provides flexible control options
Reduces integration time and costs
EDID management
Manages EDID communications between source and switcher; allows integrators to force sources to preferred resolution
Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
HDCP Management
Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted
HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs
Two, balanced line/mic input with 48V phantom power
Provides professional audio input for wired and wireless microphones
Saves installation costs by eliminating external audio mixer
Microphone ducking with advanced controls
Automatically reduces program audio levels when mic is used
Ensures optimized voice-over performance Audio de-embedding
De-embeds PCM audio from HDMI inputs to audio out matrix
Provides audio signal routing to sound system
Adjustable Volume and EQ
Features independent gain control for each input, master audio level controls 5 band EQ adjustment
Optimizes audio signals eliminating the need for an external mixer
Front panel volume and mute controls
Volume Up and Volume Down through menu to adjust output level to sound system
Provides quick level adjustment for operators
Easy, GUI-based configuration using integrated web server
Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID and HDCP management and audio
Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone or PC in the field
IP to RS-232 translation
Converts TCP/IP commands to RS-232 commands for output to external devices
Enables single IP connection to control processor to control both IP and RS-232 connected devices. Faster installation
Ten RS-232 ports
Multiple, bidirectional, RS-232 ports to control other devices in the system
Reduces cost associated with complex control processors
Ethernet, RS-232 and IR HDBaseT insertion
Adds control signals to the HDBaseT transmission including Ethernet, RS-232 and bi-directional IR
Simplifies display control from third-party control systems
Multi-channel audio compliant
Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, and DTS-HD Master Audio™ in pass through mode
Allows any two-channel audio stream to be used within a professional audio system
Rack mountable 1U, full-rack width enclosure
Installs easily in rack mounted systems with included 19” rack and wall mount brackets
Reduces installation time and cost
Included accessories
User guide, desktop power supply with, detachable power cable, IR hand held remote control, and rack mount bracket kit
