CYP CHDMI-4 1 IN 4 OUT HDMI SPLITTER

เข้าชม 863 | ตอบ 0
CYP CHDMI-4 1 IN 4 OUT HDMI SPLITTER
  • ยี่ห้อ : CYP
  • รุ่น : CHDMI-4
  • กระจายสัญญาณ HDMI จากคอมฯ หรือ เครื่องเล่น DVD ออกเป็น 4 Output รองรับความละเอียดสูงสุด 1600x1200 หรือ HDTV 1080p และต่อได้ไกล 15 เมตร

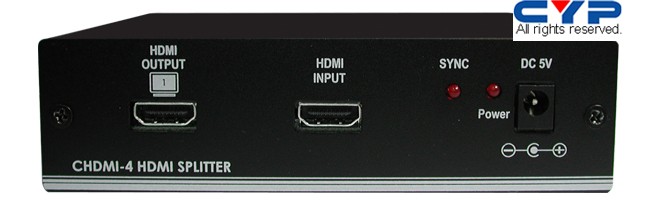

    Cypress CHDMI-4 is a high performance HDMI distribution amplifier. It allows one HDMI source to connect up to 4 HDMI displays simutaneously.
    • Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display.
    • Splits a HDMI source up to 4 outputs without signal loss.
    • Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable.
    • Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480p to 1080p. Maximum resolution bandwidth 165MHz.
    • Can be cascaded up to 3 layers
    • Each of the buffered output can run up to 15 Meters @1600x1200.
    SPECIFICATIONS
    • Frequency bandwidth : 1.65Gbps (single link)
    • Input/Output : 1-in/4-out HDMI female port
    • Power consumption : 6W Max
    • 5VDC universal power supply
    • Operating temperature range : 0 ~ 40 C
    • Operating humidity range : 30 to 80% RH
    • Dimensions : 102 (W) x 141 (D) x 38 (H) mm
    • Weight : 550 gs
  • ราคาปกติ : 6,450.00 ฿
  • ราคาพิเศษ : 6,300.00 ฿
