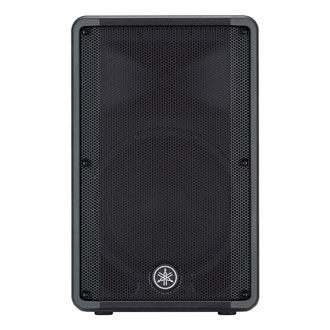

YAMAHA DBR12 12"2-way Powered Loundspeaker 465w. ราคาต่อใบ
YAMAHA DBR12 12"2-way Powered Loundspeaker 465w. ราคาต่อใบ
ยี่ห้อ : YAMAHAรุ่น : DBR12DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.
Speaker type
2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)
52Hz – 20kHz
Nominal coverage
H
90°
V
60°
Components
LF
Diameter:12' cone, Voice Coil:2', Magnet:Ferrite
HF
Diaphragm:1.4', Type: 1' throat compression driver, Magnet:Ferrite
Crossover
2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis)
131dB SPL
I/O connectors
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation
Fan cooling, 4 speeds
Power requirements
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption
74W(1/8 Power Consumption), 18W(Idle)
Cabinet material
Plastic
Finish
Black
Handle
Side x 2
Flying and mounting hardware
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket
35mm (Bottom x 1)
Dimensions
W
376mm (14.8')
H
601mm (23.7')
D
348mm (13.7')
Net weight
15.8 kg (34.8 lbs)
ราคาปกติ : 31,000.00 ฿ราคาพิเศษ : 26,350.00 ฿
