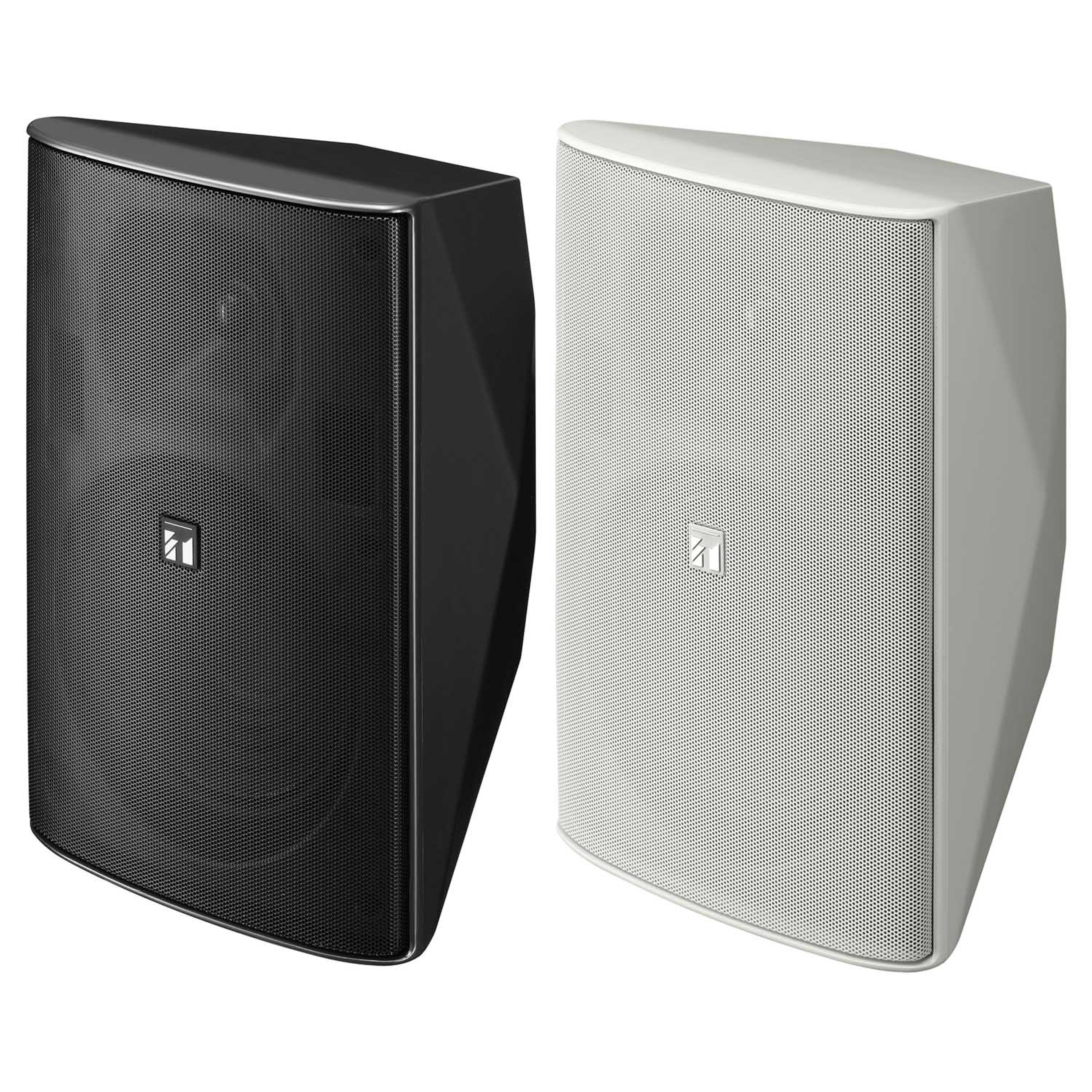

TOA F-1300BT Wide-dispersion Speaker 50-150w. ใช้ได้ทั้ง 8 โอห์มและ70/100 โวล์ท ไลน์
TOA F-1300BT Wide-dispersion Speaker 50-150w. ใช้ได้ทั้ง 8 โอห์มและ70/100 โวล์ท ไลน์
|
- ยี่ห้อ : TOA
- รุ่น : F-1300BT
- The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability.
| Enclosure |
Bass-reflex type |
| Rated Input |
30 W (high impedance) |
| Power Handling Capacity |
Continuos pink noise: 50 W (low impedance)
Continuos program: 150 W (low impedance) |
| Rated Impedance |
8 Ω
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity |
90 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response |
80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency |
2 kHz |
| Directivity Angle |
Horizontal: 110゜, Vertical: 100゜ |

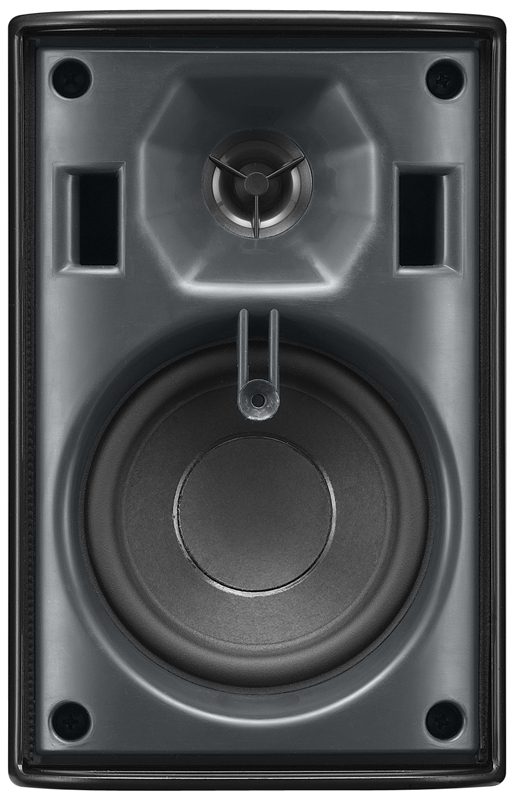

| Speaker Component |
Low frequency: 13 cm (5') cone-type
High frequency: 25 mm (1') dome tweeter |
| Input Terminal |
Push-in terminal |
| Finish |
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions |
162 (W) × 250 (H) × 161 (D) mm (6.38' × 9.84' × 6.34') |
| Weight |
3.6 kg (7.94 lb) (including the supplied brackets) |
| Accessory |
Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set |
| Option |
Board hanger bracket: HY-BH10B,
Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting),
Cluster bracket: HY-CL10B |
ราคาต่อใบ ไม่รวมค่าจัดส่ง,ภาษี ตรวจเช็คสินค้าก่อนสั่งซื้อ AIS 081 829 2449 ทุกวัน
- ราคาปกติ : 6,100.00 ฿
- ราคาพิเศษ : 5,185.00 ฿
-
|
| |
|
| |
|
|
|
