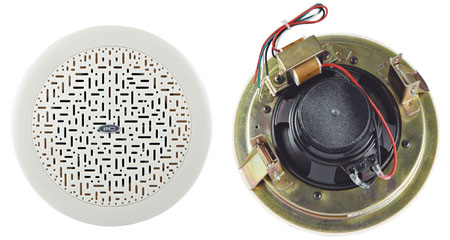

The T-105GB is a mini ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5' speaker driver is designed of wide frequency response 110-16kHz, the multiple power taps 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The Plastic enclosure and Plastic grille are painted in attractive white color. Its spring clamp makes the easy and secure installation.
Features
Built-in 100v/70v transformer
In-ceiling type loudspeaker
5” speaker unit
Power taps 1.5W, 3W & 6W @100V
Metal grille and metal baffle
Paint in white color
Fast installation by spring clip
Model T-105GB
Rated power (100V) 1.5W, 3W, 6W
Rated power (70V) 0.75W, 1.5W, 3W
Impedance Black: COM Red: 6.7KΩ Green: 3.3KΩ White 1.7 KΩ
