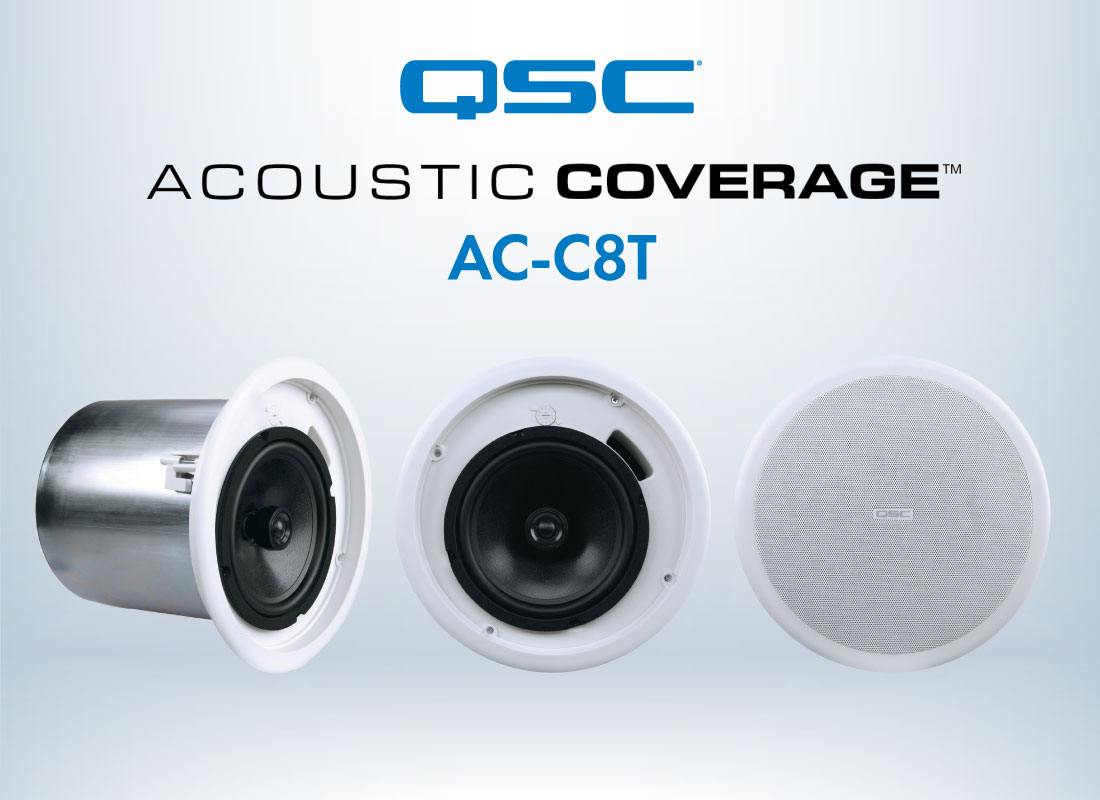

QSC AC-C8T 8-inch 2-way, 100° conical ceiling speaker 80 watts.
QSC AC-C8T 8-inch 2-way, 100° conical ceiling speaker 80 watts.
|
- ยี่ห้อ : QSC
- รุ่น : AD-S12
- AC-C8T 8-inch 2-way, 100° conical ceiling speaker 80 watts.
Specifications AC-C8T
- Effective frequency range 52 Hz – 20 kHz
- Rated noise power / voltage 80 watts / 25.3 volts (rms)
- Broad-band sensitivity 89 dB SPL
- Coverage angle (-6 dB) 100° (500 Hz to 5 kHz)
- Maximum continuous SPL 108 dB
- Maximum peak SPL 114 dB
- Rated impedance 8 ohms
-
- Transformer taps:
- 70 V: 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass
- 100V: 60, 30, 15, 7.5 watts and 8-ohm bypass
- HF Transducer 22 mm [.86-inch] silk dome tweeter, coaxially mounted
- LF Transducer 210 mm [8-inch] Polypropylene cone with butyl rubber surround
- Input connector type Euroblock connector with parallel output terminals
- Baffle material Painted ABS polymer
- Grille material Painted steel
- Back can material Plated steel
- Testing Listed UL1480, UL2043 safe for use in air handling space
-
- ราคาปกติ : 8,000.00 ฿
- ราคาพิเศษ : 7,200.00 ฿
-
|
| |
|
| |
|
|
|
