Tannoy CVS4 MICRO COMPACT FULL RANGE 4" LOW PROFILE TWO-WAY CEILING SPEAKER 80 w.6 Ohms.

เข้าชม 1107 | ตอบ 0

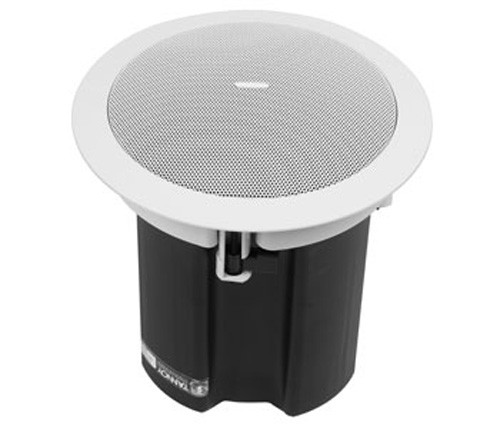

Tannoy CVS4 MICRO COMPACT FULL RANGE 4" LOW PROFILE TWO-WAY CEILING SPEAKER 80 w.6 Ohms.

-Coaxially mounted 100 mm (4.00') mineral loaded woofer with rubber surround and 19 mm (0.75') soft dome diffraction loaded tweeter
-Shallow back can for limited cavity space
-High power & high sensitivity with very low distortion Wide, controlled constant directivity dispersion for optimum coverage UV/weather resistant UL94 V-0 ABS front baffle
-Easily accessible tapping switch on front baffle
-Low insertion loss 15 W line transformer
-Ferrofluid cooled neodymium HF
-Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics

Frequency Response (-3 dB) (1)	110 Hz - 19 kHz
Frequency Range (-10 dB) (1)	90 Hz - 22 kHz
System Sensitivity (1 W @ 1 m) (2)	87 dB (1 W = 2.45 V for 6 Ohms)
Nominal Coverage Angle	90 degrees conical
Coverage Angle (1 kHz to 6 kHz)	102 degrees conical
Directivity Factor (Q)	5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI)	7.1 averaged 1 kHz to 6 kHz
Rated Maximum SPL (2)	Average: 103 dB Peak: 109 dB
Power Handling (3)	Average: 40 W Programme: 80 W Peak: 160 W
Recommended Amplifier Power	80 W @ 6 Ohms
Nominal Impedance	6 Ohms
Crossover Point	2.7 kHz
