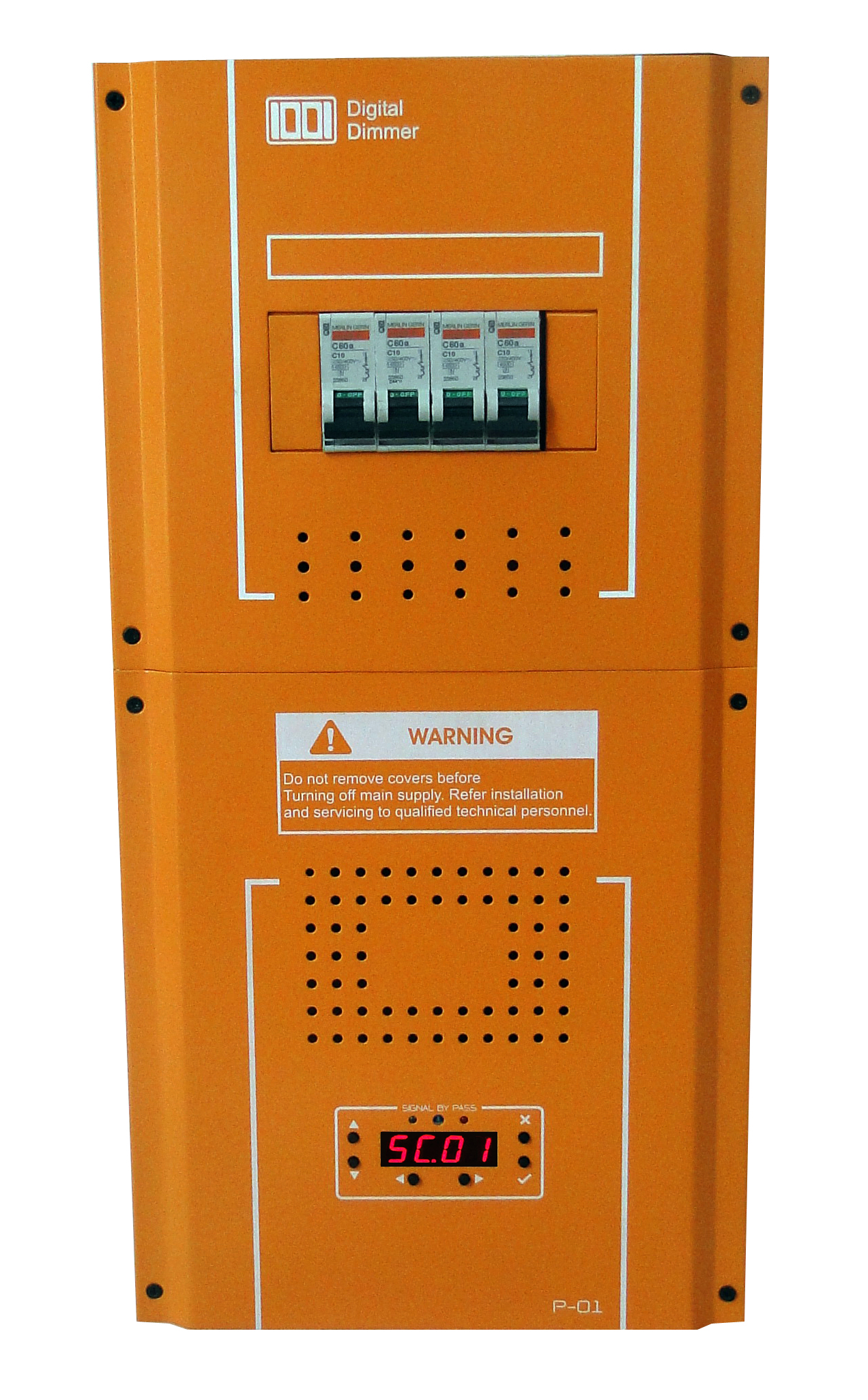

Digital data processing controlled by microprocessor
and microcontroller.
• 2.2K,2.5K,3.3K,5.5Kw dimming or Relay per ch.
• DMX-512 digital control protocol
• Solid state thyristor phase control(scr[2/Ch]or triac)
• ‘DMX-In’ LED for DMX-512 signal indication
• Up to 32 program recalling
.• Digital DMX start channel display
• Dimming or switching each channel can be set to be a switching
only (non-dimming)
• Single or three phase operation
• Dimmer will hold last DMX value for a set time should control
data be interrupted
• 1024-step fade resolution for all fade and cross-fade functions
• Data bus including: DMX, Rs485
• RS485 Interface: LMX, RS232 Interface to PC
Specification :-
Power supply type: 1-Phase,2 Wires 200-240 Vac 50 Hz. OR
3-Phase 4 Wires 200-240 Vac 50 Hz..
Dissipation: <1.0% of output load
Operating temp: 40°C max for output load.
Dimmer curve: Square law B
Output rise time: Standard (10% - 90%) RFI systems meet with BS800, VDE 0875 and CISPR14
(EN55015, EN55022, EN50081) [Toroidal choke and RC Network ]
Output protection: Magnetic circuit breakers under IEC 898 and IEC947-2 standard
Control input: LMX protocol (Lighting multiplexer) [Support RS485] and DMX- 512(USITT1990)
Display: 4 digit 7 segments, high brightness. [Option LCD display]
Test facility: Individual channel on/off Phase/All 0,20,40,60,80,100%
