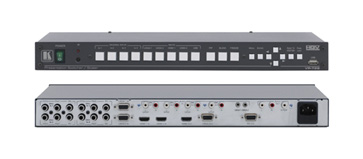

The VP-728 is a 9-input scaler/switcher for analog and digital video, unbalanced stereo, and S/PDIF audio signals. It up- or down-scales any video signal: composite, s-Video (Y/C), component video (YUV), HDMI, computer graphics video and JPEG files to a selectable graphics or HDTV output resolution via identical HDMI or 15-pin HD outputs. It provides glitch-free switching between sources through FTB™ (fade-thru-black) switching technology.
HQV® Video Processing
Fade−Thru−Black Switching
Picture−in−Picture / Picture−and−Picture
Universal Video Inputs − Each on 3 RCAs
HDTV Output − Up to 1080p
Computer Output − Up to 1920x1200
Audio Inputs/Outputs − 4 (Stereo or S/PDIF)
Audio Delay −0−340msec
Embeds & De−embeds HDMI Audio
Control − RS−232 & IR
Size - Standard 19' (1U). Rack 'ears' included.
Audio - U/D/E
INPUTS:
4 universal Y/CV, Pb/C, Pr (composite, s−Video and component) 1 Vpp/75Ω on RCA connectors;
2 UXGA on a 15−pin HD connector (VGA through UXGA);
2 HDMI connectors;
1 USB connector;
For each universal input there is a corresponding (unbalanced) audio stereo input (1V nom./25kΩ minimum) and digital stereo S/PDIF input (32kHz to 96kHz sample frequency/75Ω) on RCA connectors;
For each UXGA input there is a corresponding (unbalanced) audio stereo input on a 3.5mm mini jack connector.
OUTPUTS:
1 HDMI connector;
1 UXGA format on a 15−pin HD connector;
1 unbalanced audio stereo output (1V nom./50Ω) on RCA connectors;
1 digital stereo S/PDIF output (32kHz to 96kHz sample frequency/75Ω) on an RCA connector.
