สินค้า HDMI,VGA,AV Switch - KRAMER Kramer VP-27 12-Input Multi-Format Presentation Switcher

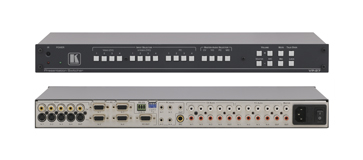

Kramer VP-27 12-Input Multi-Format Presentation Switcher

เข้าชม 1544 | ตอบ 0
Kramer VP-27 12-Input Multi-Format Presentation Switcher
  • ยี่ห้อ : Kramer
  • รุ่น : VP-27
  • Kramer-VP-27  12-Input Multi-Format Presentation
    INPUTS: 4 composite video on RCA connectors,
    4 s−Video on 4−pin connectors,
    4 PC on 15−pin HD connectors;
    4 unbalanced stereo audio on RCA connectors, L+R (for CV),
    4 unbalanced stereo audio on RCA connectors, L+R (for Y/C),
    4 unbalanced stereo audio on 3.5mm mini jacks (for PC),
    Mic: 3mV/10kW, condenser/dynamic on a 6.3mm phone connector.
    OUTPUTS: 1 composite video on an RCA connector,
    1 s−Video on a 4−pin connector,
    1 PC on a 15−pin HD connector;
    1 master audio on an RCA connector, L+R,
    1 unbalanced stereo audio on an RCA connector, L+R (for CV),
    1 unbalanced stereo audio on an RCA connector, L+R (for Y/C);
    1 unbalanced stereo audio on a 3.5mm mini jack (for PC).
    MAX. OUTPUT LEVEL: Video: CV and Y/C: 1.8Vpp; PC: 2Vpp; Audio: CV and Y/C: 1.8Vpp; Mic: 6.2Vpp, PC: 6.2Vpp; Master: 6Vpp.
    BANDWIDTH (-3DB): CV: 683MHz; Y/C: 725MHz; PC: 415MHZ; Audio:CV and Y/C: >40kHz; mic: 22.6kHz; PC: >40kHz; master: 22.5kHz.
    DIFF. GAIN: CV and Y/C: 0.03%; XGA: 0.05%.
    DIFF. PHASE: CV and PC: 0.03 Deg.; Y/C: 0.02Deg.
    K-FACTOR: <0.05%.
    S/N RATIO: Video (@5MHz): CV: 75.1dB; Y/C: 78.7dB; PC: 74.4dB; Audio (@1MHz): CV and Y/C: 78.5dB; PC: 78dB; mic: 52dB.
    CROSSTALK (ALL HOSTILE): Video (@5MHz): CV: −50.5dB; Y/C: −33dB; PC: −51.5dB; Audio: −68.9dB @1MHz, −43.3dB @20kHz (Y/C).
    CONTROLS: MUTE, TALKOVER, MIX, LOCK, switching front panel buttons, RS−232, rear panel DIP−switches, volume for line: −62dB to +14.1dB; mic volume: −17dB to +69.5dB.
    COUPLING: Video: DC; Audio: AC.
    AUDIO THD + NOISE (@1KHZ): Y/C: 0.092%; PC: 0.024%.
    AUDIO 2ND HARMONIC (@1KHZ): Y/C and PC: 0.03%.
    POWER CONSUMPTION: 100−240V AC, 6VA max.
    DIMENSIONS: 19' x 7' x 1U (W, D, H) rack mountable.
    WEIGHT: 2.7kg (6lbs) approx.


  • ราคาปกติ : 39,800.00 ฿
  • ราคาพิเศษ : 31,840.00 ฿
