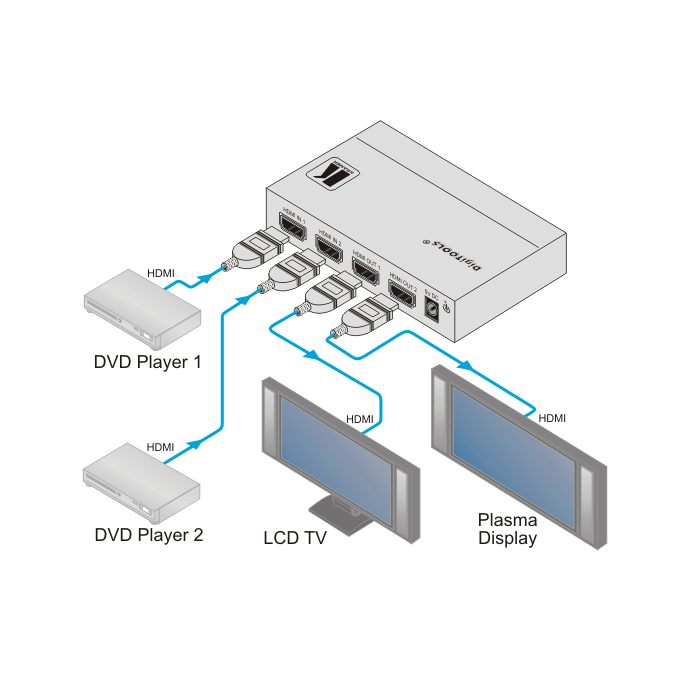

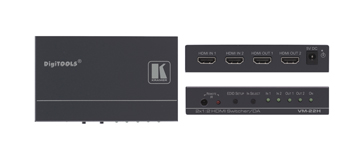

The VM-22H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to two identical outputs.
INPUTS:
2 HDMI connectors.
OUTPUTS:
2 HDMI connectors.
BANDWIDTH:
6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:
Supports HDMI and HDCP.
CONTROLS:
EDID SETUP button, input select button, IR.
INDICATOR LEDS:
IN 1, IN 2, OUT 1, OUT 2, and ON LEDs.
POWER CONSUMPTION:
5V DC, 910mA.
DIMENSIONS:
12cm x 7.15cm x 2.44cm (4.7' x 2.8' 0.96') W, D, H.
