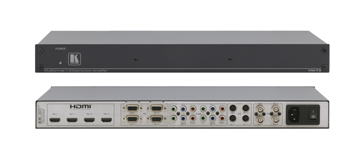

Kramer VM-73 1:3 Multi-Format Video, HDMI & Computer Graphics Video Distribution Amplifier

สร้างเว็บ

[ แจ้งการชำระเงิน ] [ วิธีการชำระเงิน ] [ วิธีการส่งสินค้า ] ตะกร้าสินค้า

Kramer VM-73 1:3 Multi-Format Video, HDMI & Computer Graphics Video Distribution Amplifier

เข้าชม 1147 | ตอบ 0

Kramer VM-73 1:3 Multi-Format Video, HDMI & Computer Graphics Video Distribution Amplifier

INPUTS:	1 composite on a BNC connector, 1 s−Video on a 4−pin connector, 1 component (Y, Pb/Cb, Pr/Cr) on 3 RCA connectors, 1 XGA on a 15−pin HD connector, 1 HDMI on an HDMI connector.
OUTPUTS:	3 composite on BNC connectors, 3 s−Video on 4−pin connectors, 3 component (Y, Pb/Cb, Pr/Cr) on 3 RCA connectors each, 3 XGA on 15−pin HD connectors, 3 HDMI on HDMI connectors.
OUTPUT LEVEL:	1.8Vpp (composite), 1.9Vpp (Y/C), 2.0Vpp (component), 2.0Vpp (XGA).
BANDWIDTH (-3DB):	430MHz (composite), 440MHz (Y/C), 430MHz (component), 405MHz (XGA), 2.25Gbps (HDMI).
DIFF. GAIN:	0.05% (composite), 0.06% (Y/C),0.05% (component), 0.05% (XGA).
DIFF. PHASE:	0.05Deg (composite), 0.02Deg (Y/C), 0.05Deg (component), 0.03Deg (XGA).
S/N RATIO (@5MHZ):	62dB (composite), 62dB (Y/C), 74dB (component), 69dB (XGA).
COUPLING:	DC (composite); Y−DC, C−AC (Y/C); DC (component); DC (XGA).
K-FACTOR:	<0.05%.
CROSSTALK (ALL HOSTILE):	−60dB.
POWER CONSUMPTION:	100−240V AC, 100mA.
PRODUCT DIMENSIONS:	19' x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT:	1.5kg (3.2lbs) approx.
SHIPPING DIMENSIONS:	55.00cm x 27.60cm x 10.70cm (21.65' x 10.87' x 4.21' ) W, D, H
SHIPPING WEIGHT:	2.2kg (4.8lbs) approx.
INCLUDED ACCESSORIES:	Power cord, rack “ears”.
