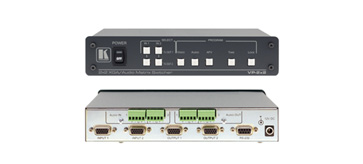

Kramer VP-2x2 2x2 Computer Graphics Video & Balanced Stereo Audio Matrix Switcher
Kramer VP-2x2 2x2 Computer Graphics Video & Balanced Stereo Audio Matrix Switcher
|
- ยี่ห้อ : Kramer
- รุ่น : VP-2x2
- Kramer - VP-2x2
2 x 2 Computer Graphic Video & Audio Matrix Switcher
| INPUTS: |
2 VGA/UXGA on 15-pin HD (F) connectors; 2 balanced stereo audio on detachable terminal block connectors. |
| OUTPUTS: |
2 VGA/UXGA on 15-pin HD (F) connectors; 2 balanced stereo audio on detachable terminal block connectors. |
| MAX. OUTPUT LEVEL: |
Video: 1.7Vpp; audio: 7.2Vpp. |
| BANDWIDTH (-3DB): |
Video: 400MHz; audio: 100kHz. |
| DIFF. GAIN: |
0.05%. |
| DIFF. PHASE: |
0.05Deg. |
| K-FACTOR: |
0.05%. |
| S/N RATIO: |
Video: 78.3dB; audio: 95dB, unweighted. |
| CROSSTALK: |
Video: -43dB; audio: 77dB @1kHz. |
| CONTROLS: |
Front panel buttons, RS-232. |
| COUPLING: |
DC. |
| AUDIO THD + NOISE: |
0.049%. |
| AUDIO 2ND HARMONIC: |
0.003%. |
| POWER CONSUMPTION: |
12V DC, 150mA. |
| DIMENSIONS: |
22cm x 18cm x 4.5cm (8.7” x 7” x 1.7”) W, D, H. |
| WEIGHT: |
1.1kg (2.4lbs) approx. |
- ราคาปกติ : 29,500.00 ฿
- ราคาพิเศษ : 23,600.00 ฿
-
|
| |
|
| |
|
|
|
