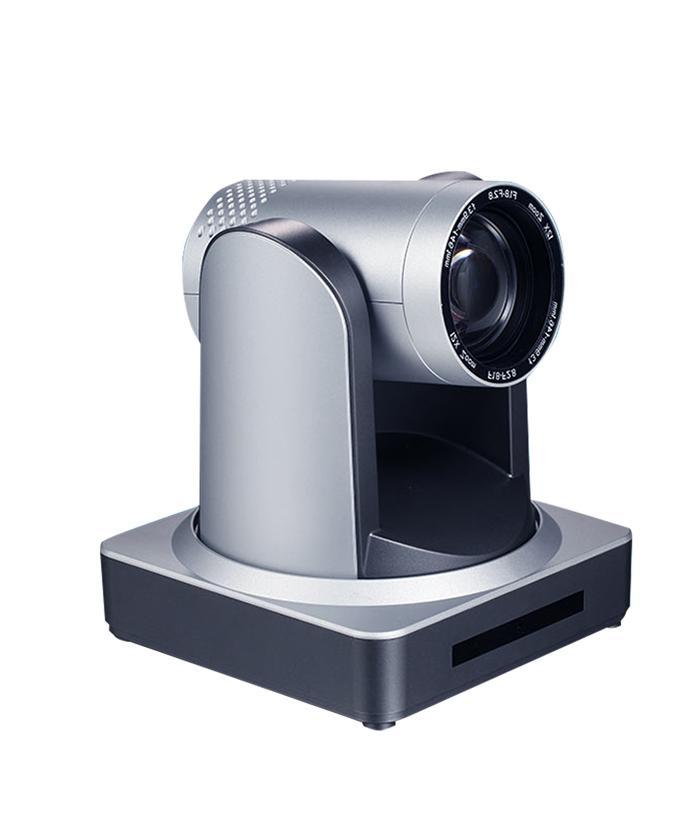

Razr UV-510A-U5-U2 Video Conference PTZ ,5x
Razr UV-510A-U5-U2 Video Conference PTZ ,5x
|
- ยี่ห้อ : Razr
- รุ่น : UV510A-05-U2
- Sensor 1/2.8 inch high quality HD CMOS sensor
- Optical Zoom 5x optical zoom f=3.1~15.5mm
- Effective Pixels 16: 9, 2.07 megapixel
- Video format 176×144/320×240/320×180/352×288/640×480/720×480/720×576/640×360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5
- View Angle 20°(tele)–83.7°(wide)
- AV F1.8 – F2.8
- Digital Zoom 10X
- Minimum Illumination 0.5Lux (F1.8, AGC ON)
- DNR 2D & 3D DNR
- White Balance Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
- Focus Auto/Manual/A key focus
- Aperture Auto/Manual
- Electronic Shutter Auto/Manual
- BLC ON/OFF
- WDR OFF/ Dynamic level adjustment
- Video Adjustment Brightness,Color,Sarutation,Contrast,Sharpness,B/W mode, Gamma curve
- SNR >55dB
- USB2.0 Output 1
- LAN 1
- Video Compression Format H.264, H.265
- RS-232 Input 1
- RS-232 Output 1
- Control Protocol VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps
- Audio Input Interface Double track 3.5mm linear input
- Audio Compression Format AAC/MP3/G.711A
- HD IP Interface 100M IP port(100BASE-TX)
- Pan Rotation ±170°
- Tilt Rotation -30°~+90° Tilt Control Speed
- Preset Speed Pan: 60°/sec, Tilt: 30°/sec
- Preset Number 255 presets (10 presets by remote controller)
- Supply Adapter AC110V-AC220V to DC12V/1.5A
- Input Voltage DC12V±10%
- Input Current 1A (Max)
- Consumption 12W (Max)
- Working Temperature -10°C~ +50°C
- Dimension 150mmX150mmX167.5mm
- 1.4KG
ใช้ร่วมกับ KDB 1010 Control Keyboard ราคา เครื่องละ 28,000 บาท- ราคาปกติ : 68,900.00 ฿
- ราคาพิเศษ : 50,000.00 ฿
-
|
| |
|
| |
|
|
|
