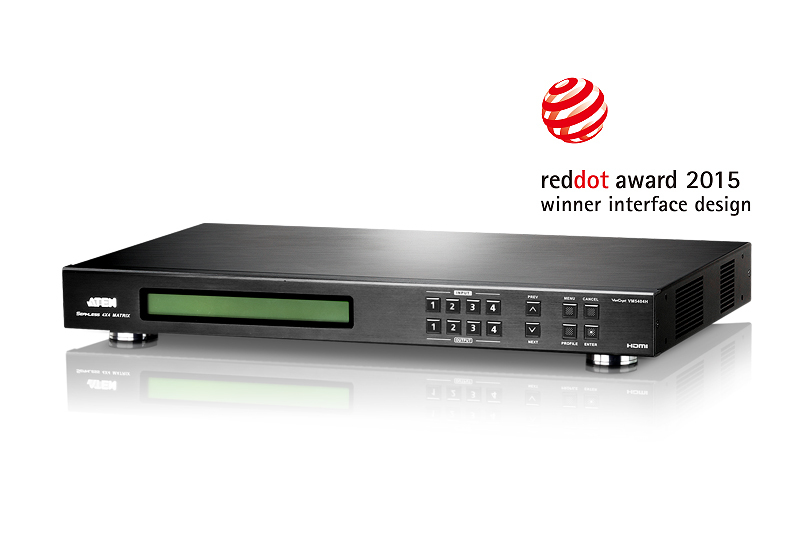

The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD.

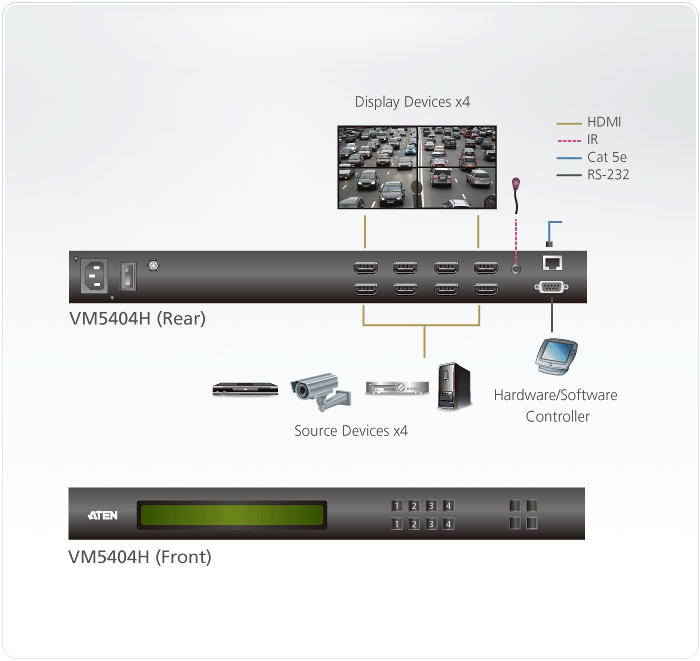

Connects any of 4 HDMI sources to any of 4 HDMI displays
Long Distance Transmission – supports up to 15 m (24 AWG)
HDMI (3D, Deep color); HDCP 1.4 compatible
Seamless Switch™ – ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions*
Video Wall –allows you to create custom video wall layouts via intuitive web GUI
EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
Features a built in high-performance scaler for the best image quality
Built-in bi-directional RS-232 serial port for high-end system control
Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
