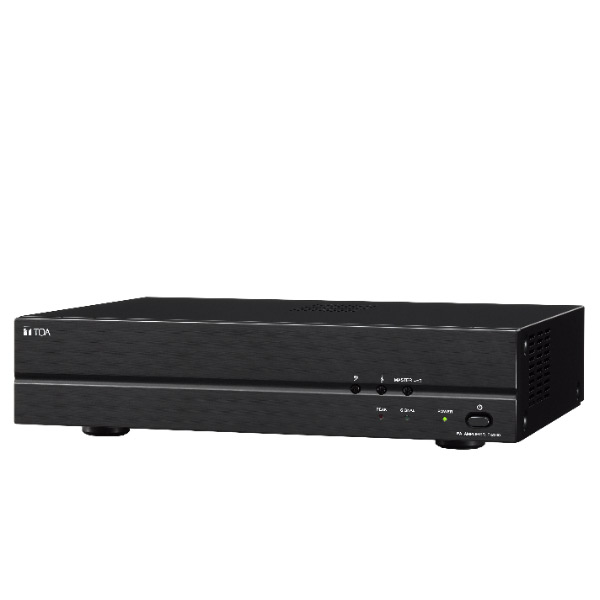

P-3248D is a high performance yet cost-effective digital booster amplifier equipped suited for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.
Power Source
100 - 240 V AC, 50/60Hz or 24 V DC
Rated Output
480 W
Power Consumption
99 W (AC operation at 1/8 maximum output without clip)
Frequency Response
50 - 20,000 Hz
Input
Line In: 0 dB*, 10 kΩ, balanced, screw terminal
100 V Line In: 40 dB*, 30 kΩ, unbalanced, screw terminal
Output
Speaker out: Speaker Output in screw type terminal
Direct line (selectable): 21 Ω (100 V) or 4 Ω
Rec out: 0 dB*, 600 Ω, unbalanced, screw terminal
